How to send expanded test reports for B / new G Series PanelsP
When a test report is configured as an expanded test report, the test report sends more detailed information. It will include what made the test report send an off-normal status.
Step-by-step guide

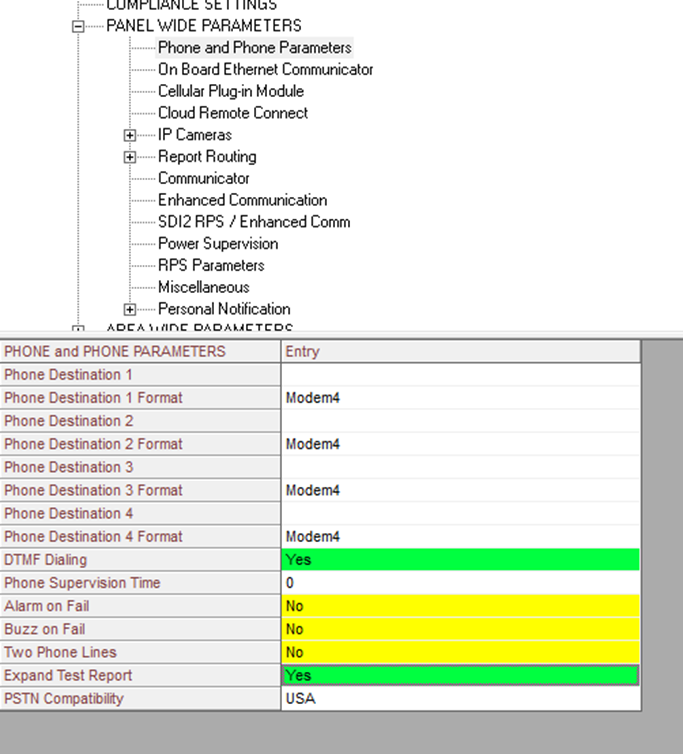

Set Expand Test report to a Yes. On this same screen if using phone this is where you ensure phone number is entered - you must use Modem Format. If using network follow step 2

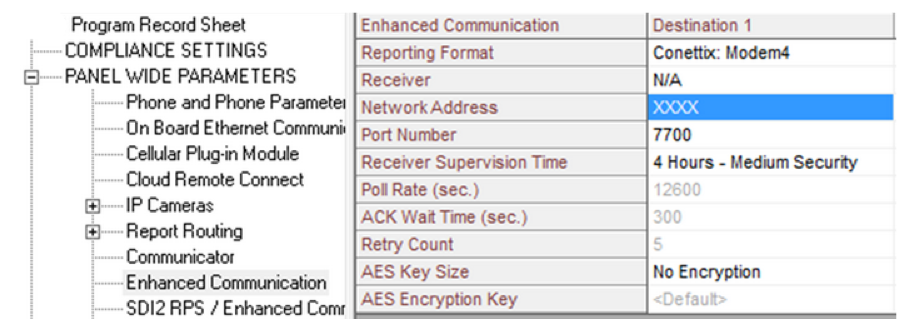

Modem format is required for sending the expanded test report signals to central station. If using network, fill out the receiver information and select Modem format.

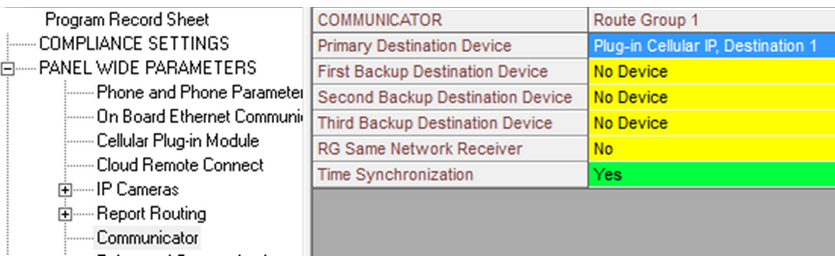

Configure the Communicator tab for what is being used for communication, in this case it is using cellular network and one receiver.

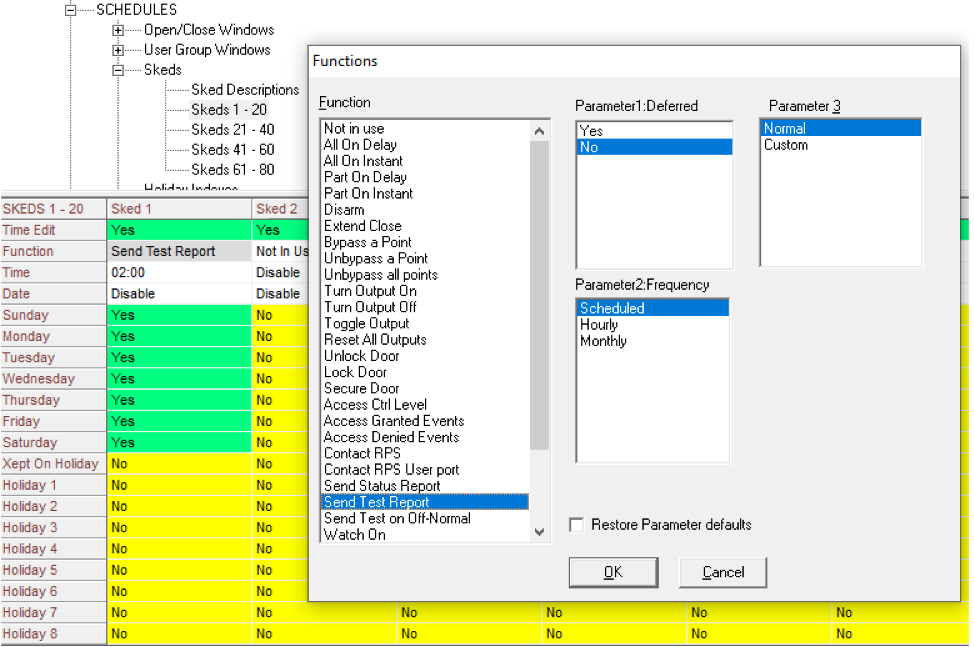

Create a sked (schedule) select Send Test Report. Important: Select each day needed to send the test report to Yes. Do NOT set a date, otherwise the sked will only occur once a year on the date entered.
For More information for setting up the test report schedule, refer to the control panel's Program Entry Guide or F1 Help Screen within RPS.
Expand Test Report as a no, will give this form of signal at central station for the account 9519.

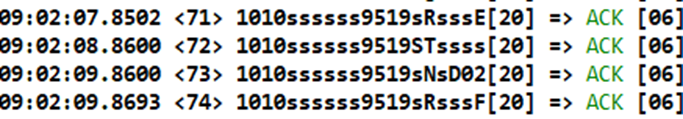

The raw data at the receiver, which can be referenced using the D6600_D6100 Computer Installation Manual, will look like:
The expanded test report at central station using automation will look like:
The off normal raw data will contain multiple signals. This example shows an off normal test with a missing battery:
