Configuration Manager: ‘Calibration upload to camera failed’ for CPP7.3 & CPP13 Bosch cameras

Possible causes and solution(s)

• Causes

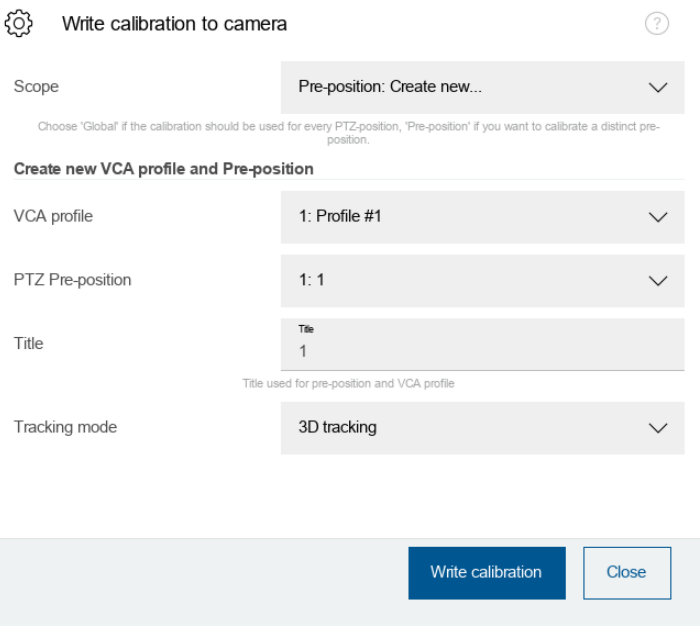

There might be situations where MIC IP fusion 9000i or Bosch INTEOX cameras cannot write calibration to camera in Configuration Manager (VCA profile and Pre-position).

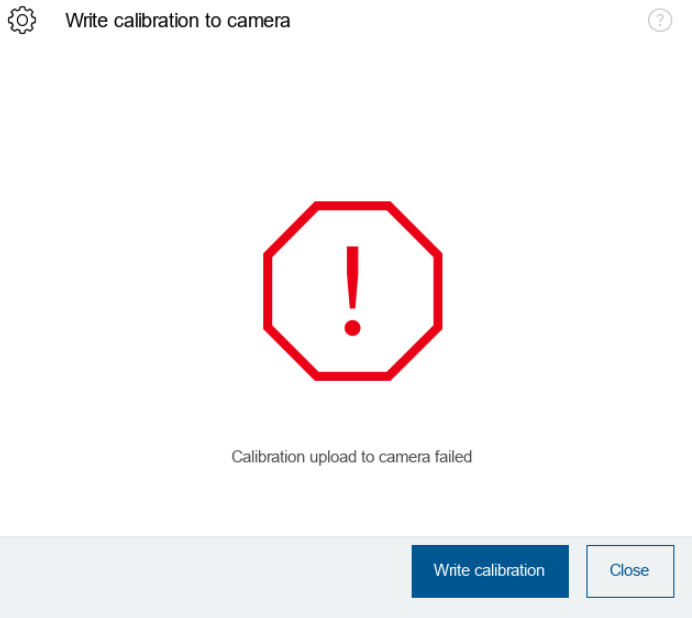

When trying to write the new calibration to the camera, it fails, and the following message occurs:

• "Calibration upload has failed."

This behavior was encountered in:

• Configuration Manager v7.50/ v7.51/ v7.41 with CPP13 Firmware 8.41.0029 INTEOX cameras
• Configuration Manager v7.40.0069.0 with CPP7.3 Firmware 7.80.0128 MIC IP fusion 9000i cameras

• Solution

Upgrade Configuration Manager to version 7.61.

Configuration Manager 7.61 is released and available online in Download Store.

• Download Configuration Manager v7.61 from here
• Configuration Manager v7.61.0143 Release Letter

This must be used in combination with CPP13 Firmware 8.45 or later
