How to collect the service log files for Bosch Analog, Hybrid and Network Recorders?

Logs are important for troubleshooting and Central Technical Support team can ask for them to investigate certain problems.

The steps below can be used for the following models:

1. DIVAR AN 3000/5000 ,
2. DIVAR Hybrid 3000/5000,
3. DIVAR Network 2000/3000/5000

You can collect Service logs from the unit using two methods. Both methods will save the service logs as a password protected ZIP file ( Example: ServiceLog-20141204T172254.zip ).

1. Method 1 : from Local User Interface
2. Method 2 : remote, using a browser

Step-by-step guide

Method 1: via Local User Interface using an USB memory stick:

• Plug USB stick on the front panel of the unit
• Log in using the administrator account

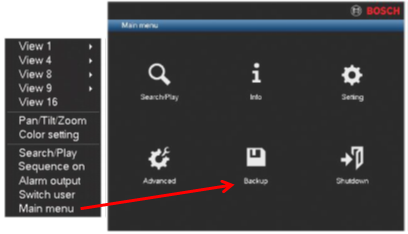

• Right click on the Main Menu > select Export ( or Backup – for AN models)

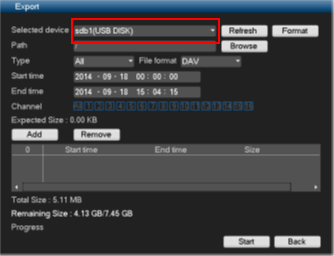

• Select the USB drive








• Press Shift button on the front panel and then let go








• Press Arrow Up button on the front panel and then let go
• One pop-up message will be displayed to save the service log. Save the service logs on the USB stick.

Method 2: You can also collect the service logs remotely, using Microsoft Edge browser.

 How can I access my DIVAR Network or Hybrid web GUI given that Internet Explorer has been retired?

• Start your browser and make sure that you can reach the recorder by entering the unit <IP-address> as URL.
•  In address bar enter: http://<ip-adress>/cgi-bin/loadSvrfile/ServiceLog.zip

            Important: Link is case sensitive!

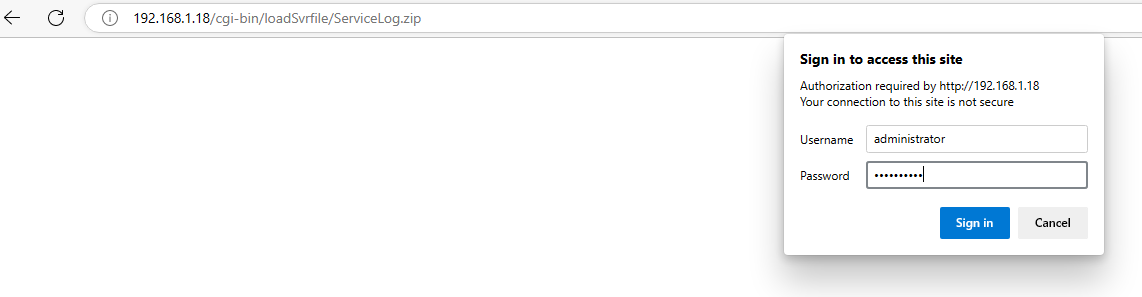

• A dialog will popup “The server <ip-address> at Device_CGI requires a username and password”.
• Enter the recorder credentials for the administrator account

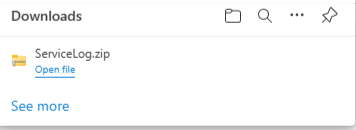

• If the link and credentials are correct you should get a dialog box that will notify you the logs are downloaded and by clicking the "Open file" you will be redirected to the ServiceLog file location.
