How to enable the Intel Utility for SSD monitoring on DIVAR IP all-in-one 7000?
The Windows Storage Server operating system of DIVAR IP all-in-one 7000 is installed on a two SSD drives in redundant (mirrored) configuration.
Health status of the mirrored OS drives can be monitored using a tool called Virtual RAID on CPU (formerly known as Rapid Storage Technology).
Installation and configuration steps are described below.
Step-by-step guide
1. Installation:
- Download the setup from here
- Copy the content to a USB drive
- When the BVMS default screen is shown, press CTRL + ALT + DEL
- Hold down the SHIFT key while clicking Log off
- Log in as BVRAdmin
- Transfer the IATA_CD.exe from the USB drive to the BVRAdmin desktop

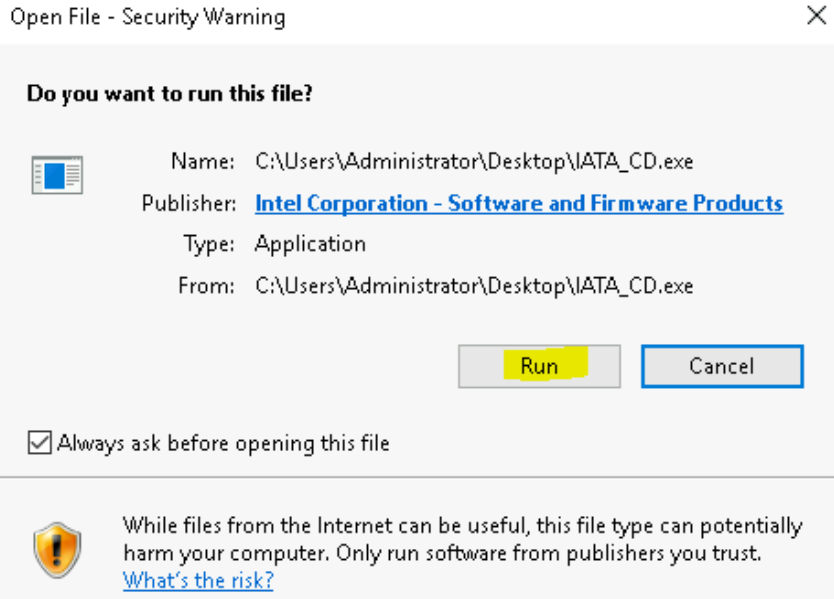

- Double click the IATA_CD.exe executable

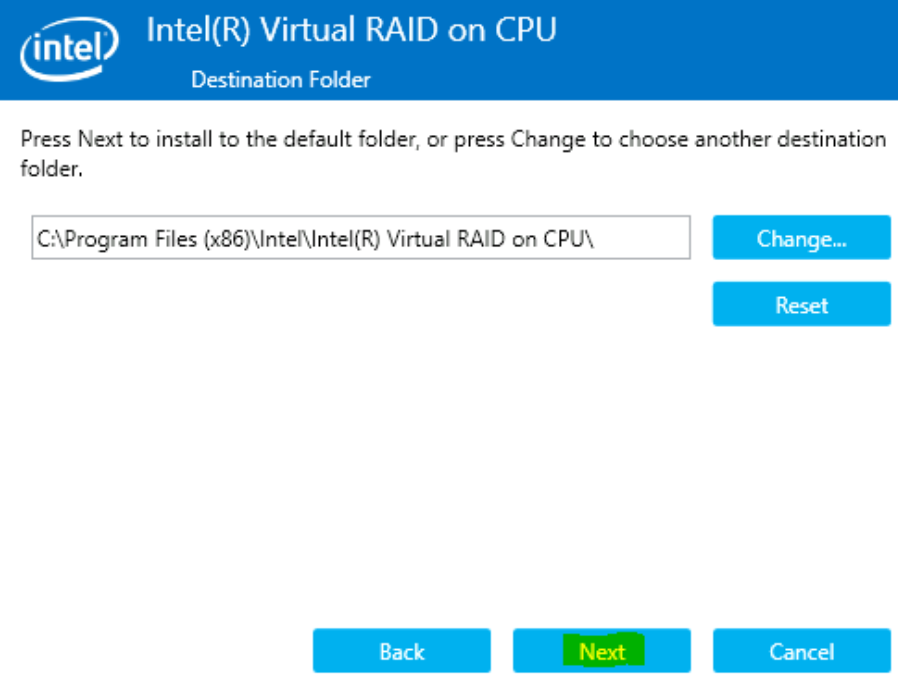

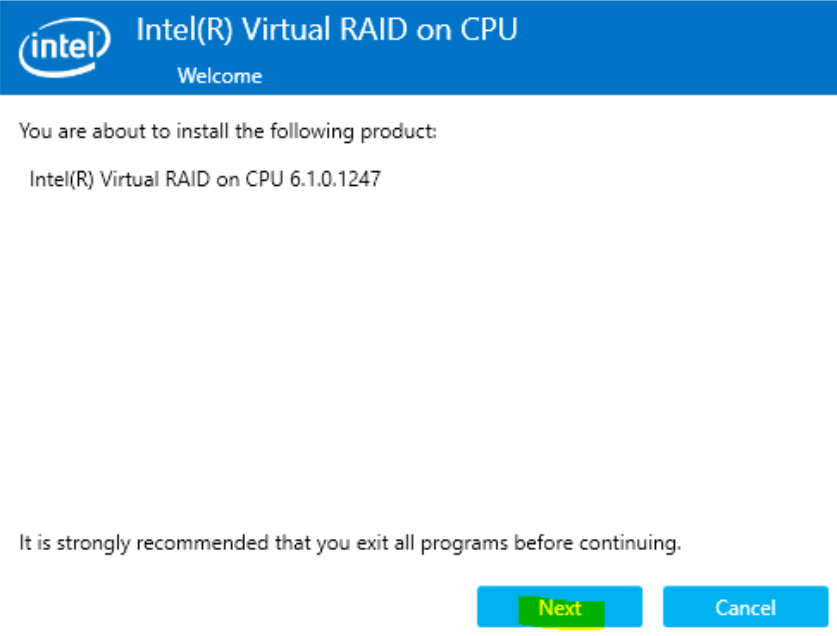

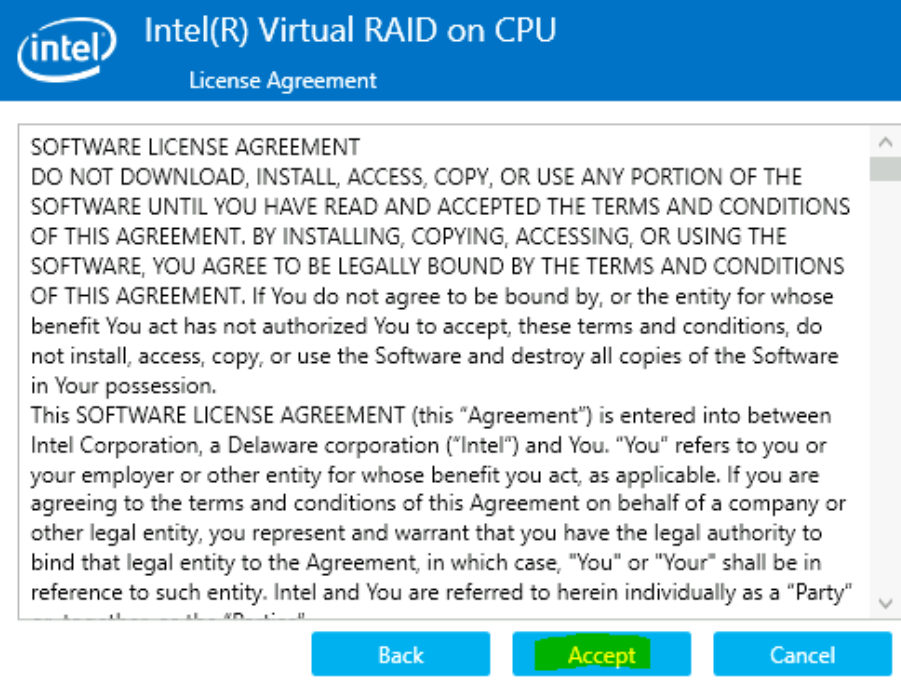

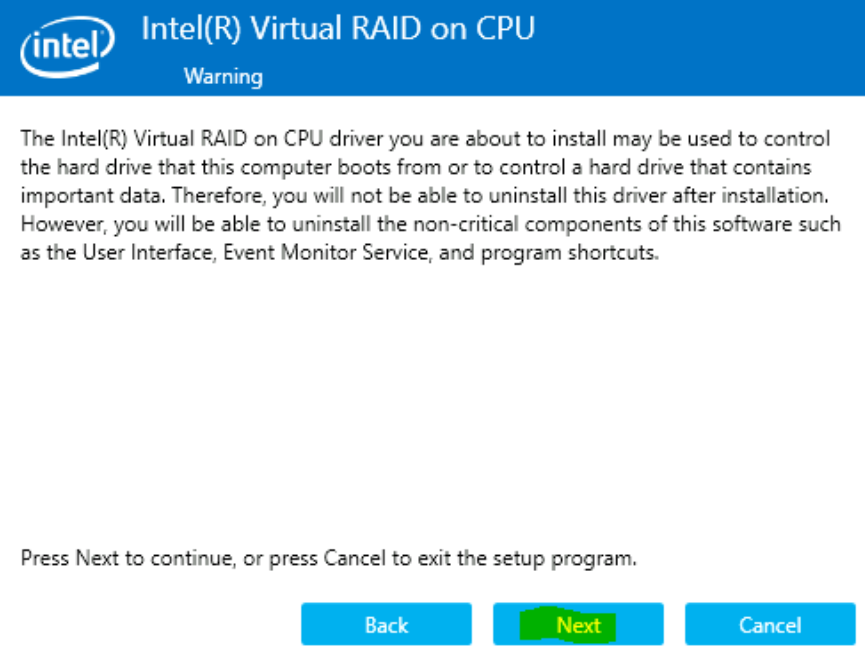

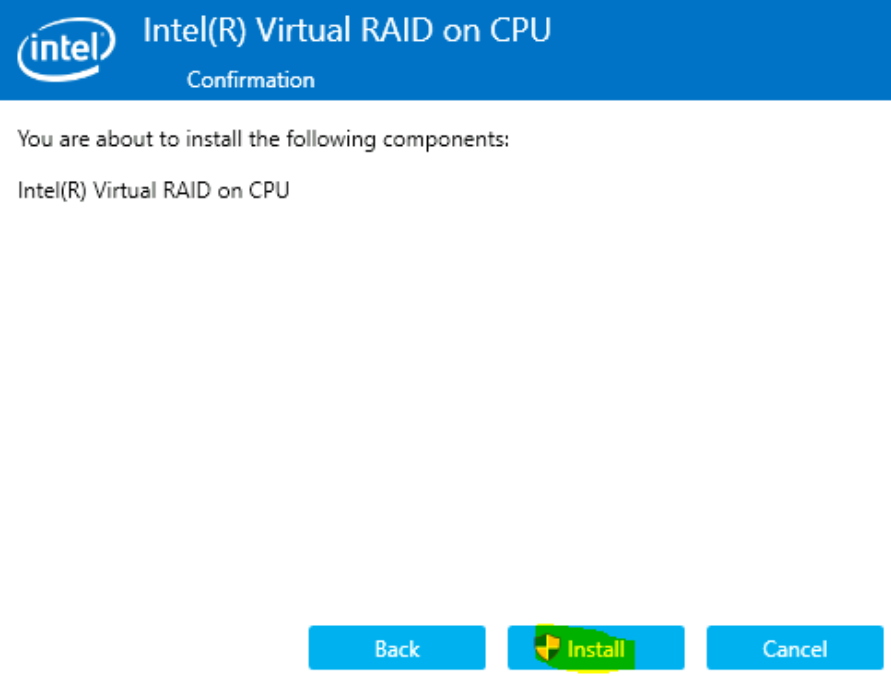

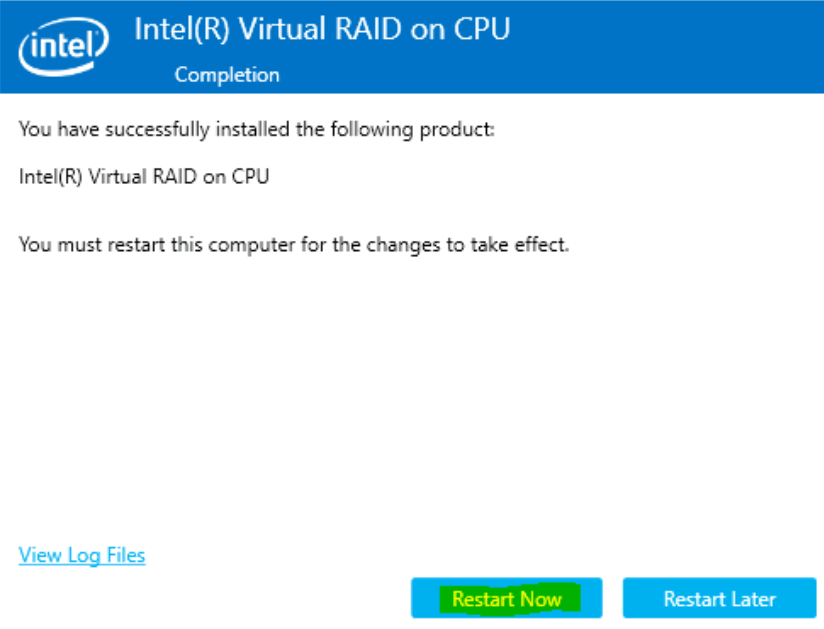

- Follow the installation procedure as shown in the screen shots

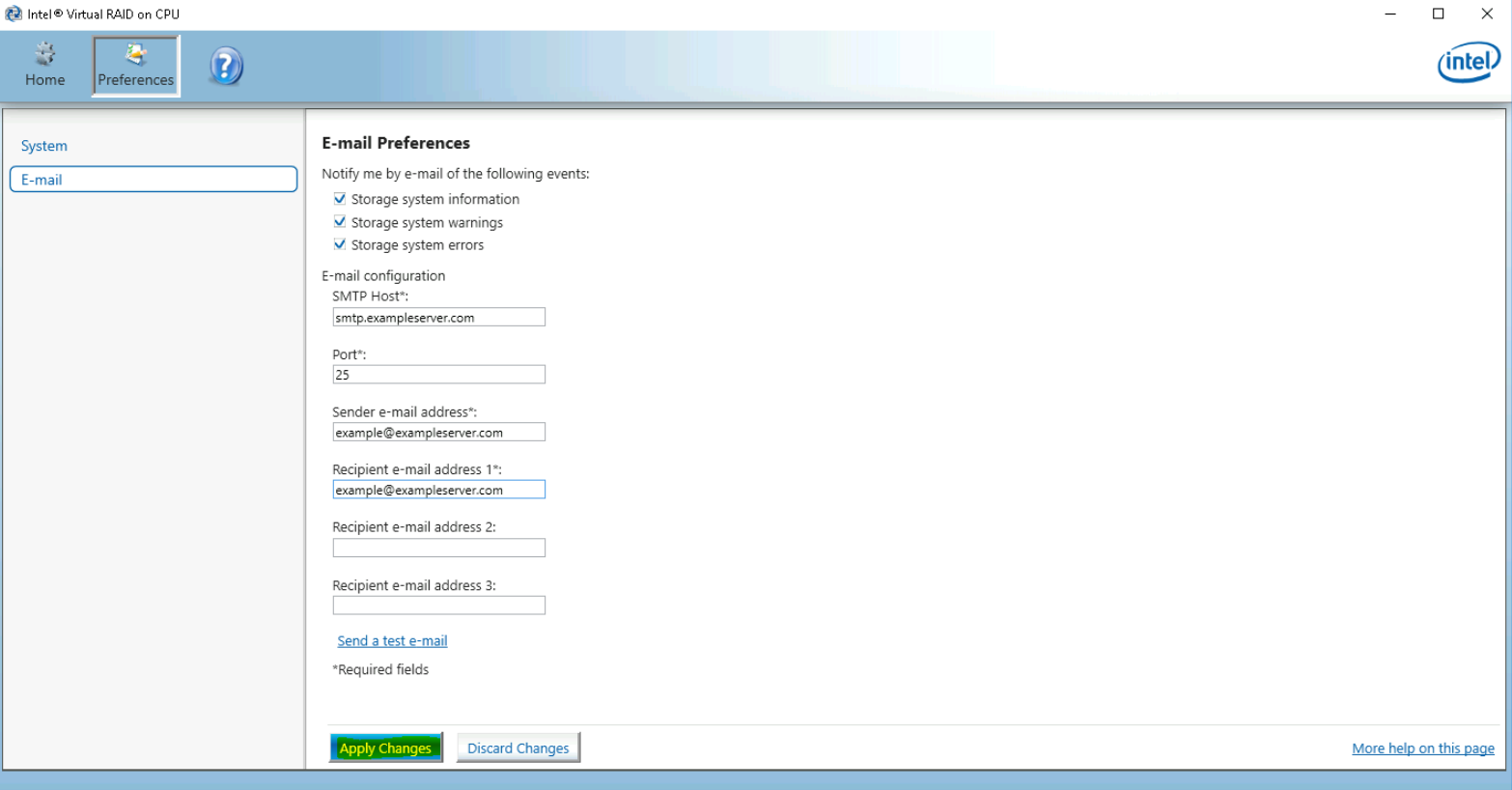

2. Email notification:
Note: The E-mail notification feature is based on SMTP access without authentication.
It is strongly suggested to use this functionality only with a dedicated server in the local network, which is specifically configured for this purpose and doesn’t handle any critical data.
Additional information:
