How to find the DIP serial number and the IPMI (BMC) information of DIVAR IP all-in-one?
Step-by-step guide
DIP serial number can be found in a number of ways:

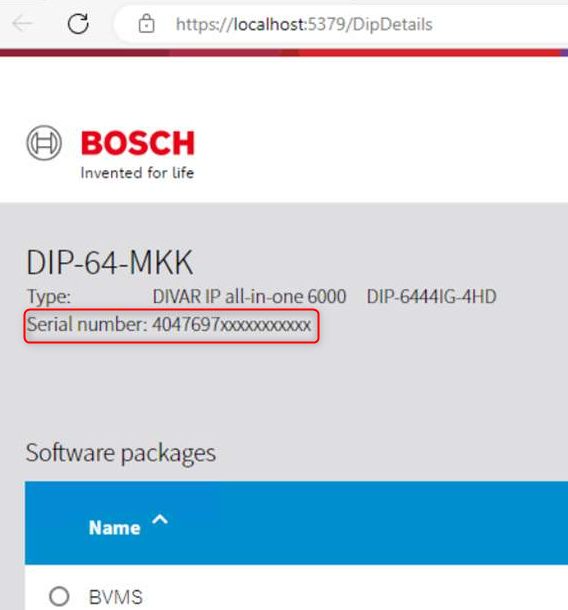

1. Run DIVAR IP System Manager from the desktop; it will show the device information:
Note
Starting with BVMS 12.01, DIP 5000 AIO and AIO 7000 (gen 2) received System Manager.
Therefore, if you have System Manager installed on your DIP 5000 AIO/ DIP 7000 AIO (gen2), you can find there the SN of the unit.

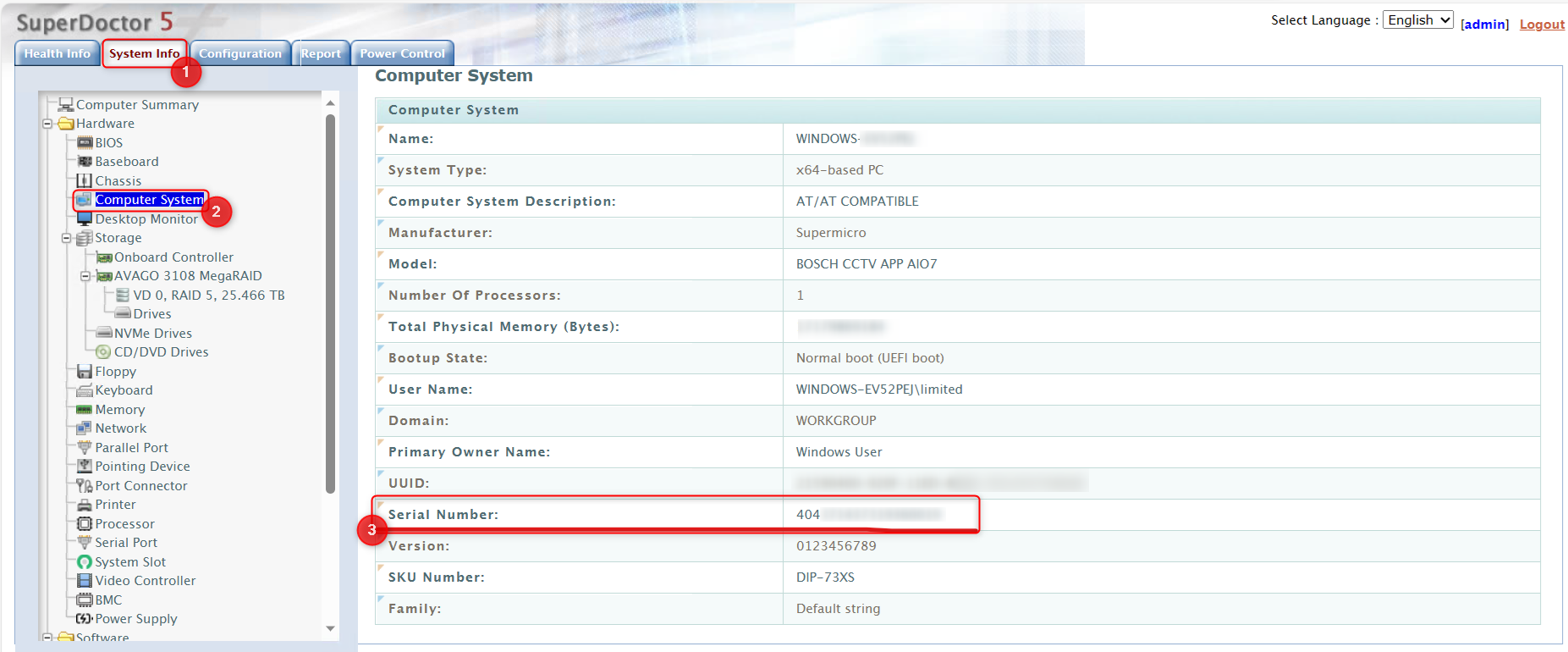

2. Double-click the SuperDoctor 5 Web icon. Sign in using its *default credentials
*default credentials are available in the User Manual of the DIVAR model you are using
Go to System Info > Computer System> The SN will be displayed there

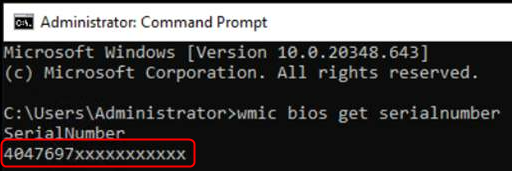

3. Use "wmic bios get serialnumber" on cmd or PowerShell:
The following info is applicable only for DIVAR IP all-in-one 6000 & 7000 gen4:

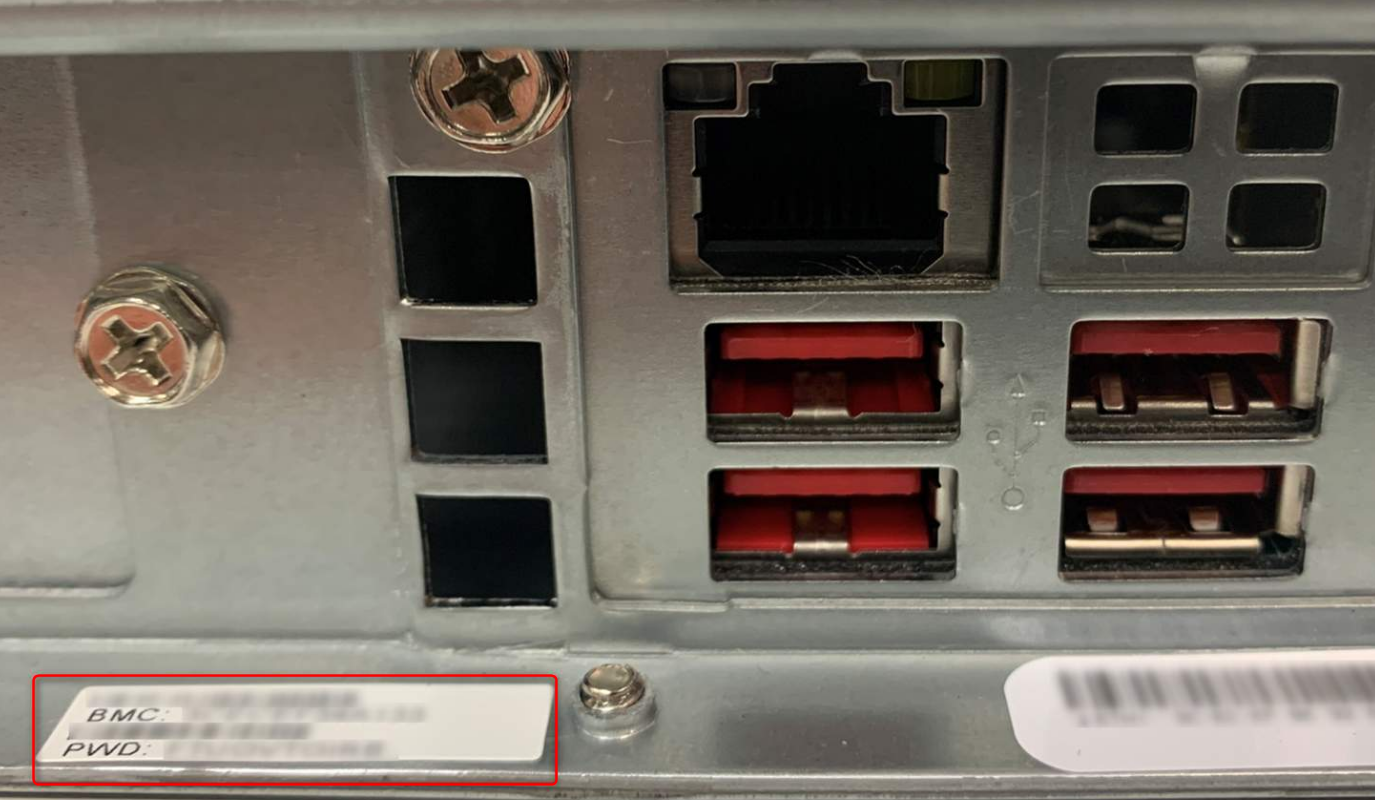

IPMI information cannot be found within the software and is provided on the device itself. It can be found next to the BMC/IPMI port on the back of the device.

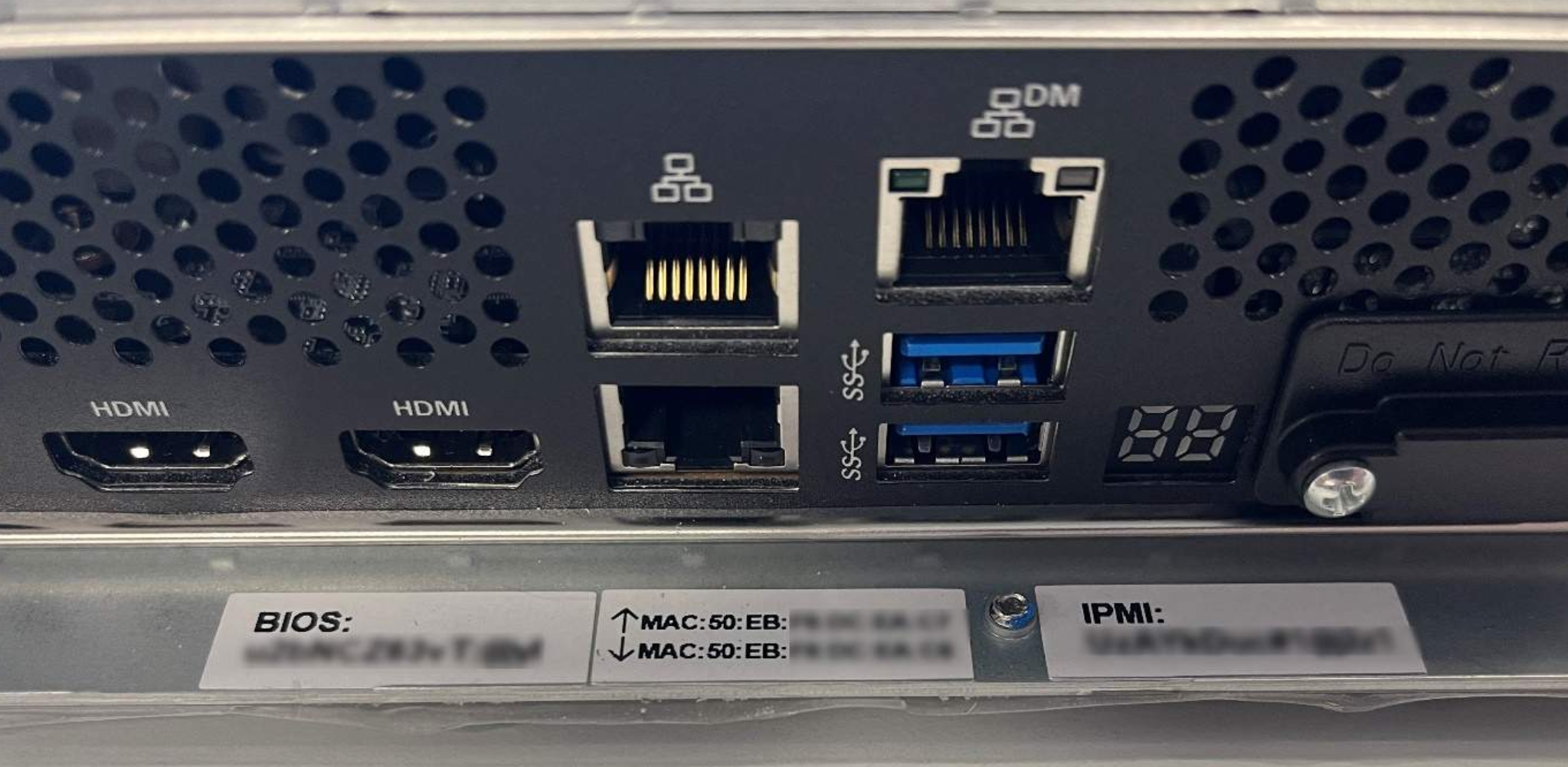

Sticker with IPMI information on the back of the DIP-64/ DIP-74:
The following info is applicable only for DIVAR IP all-in-one 7000 gen4:
Use IPMI tool to check the SN of FRU via ASUSibandAP.
The path is as follows for reference: C:\Program Files\ASUSInbandAP\ipmitool
Run a CMD terminal > Press Start Button, Type "cmd" > right click and select “Run as administrator”
In cmd terminal type:
- "cd C:\Program Files\ASUSInbandAP\ipmitool"
After that, please run the following commands:

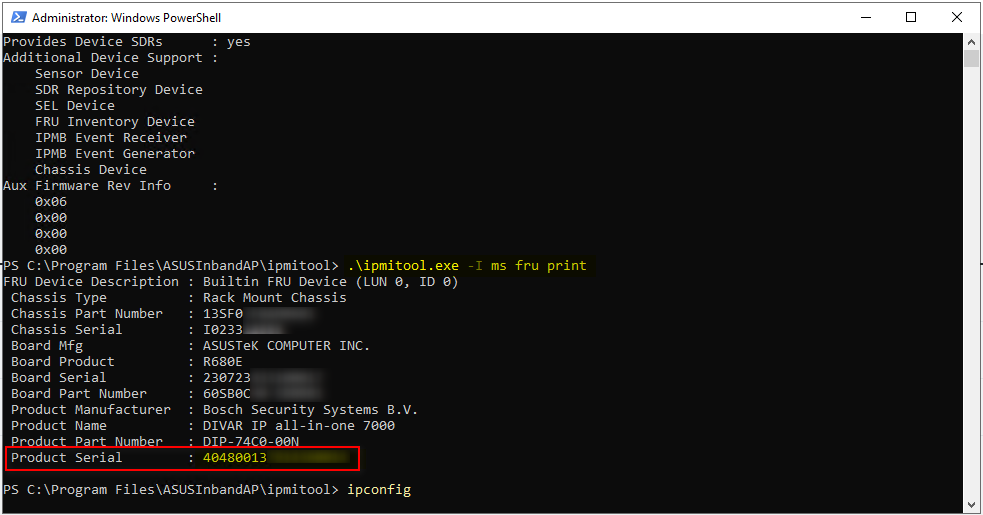

- "ipmitool.exe -I ms fru print" (check the SN )

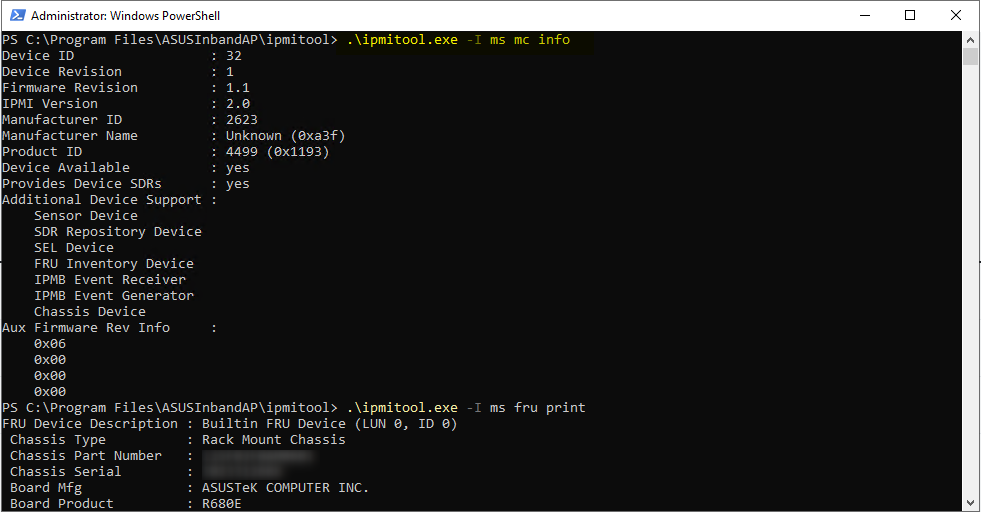

- "ipmitool.exe -I ms mc info" (to see if BMC is alive)
- If the BMC is in the normal state, then a unit recovery may be required.
- If the BMC is unusable, it may be required to replace the Motherboard.
