How to set monitor B output for Divar AN 3000-5000?

Related Products

DIVAR AN 3000
DIVAR AN 5000

This article explains how to configure Monitor B output for Divar AN 3000-5000.

Step-by-step guide

The only way to change what is displayed on monitor B is via the monitor B sequence setup

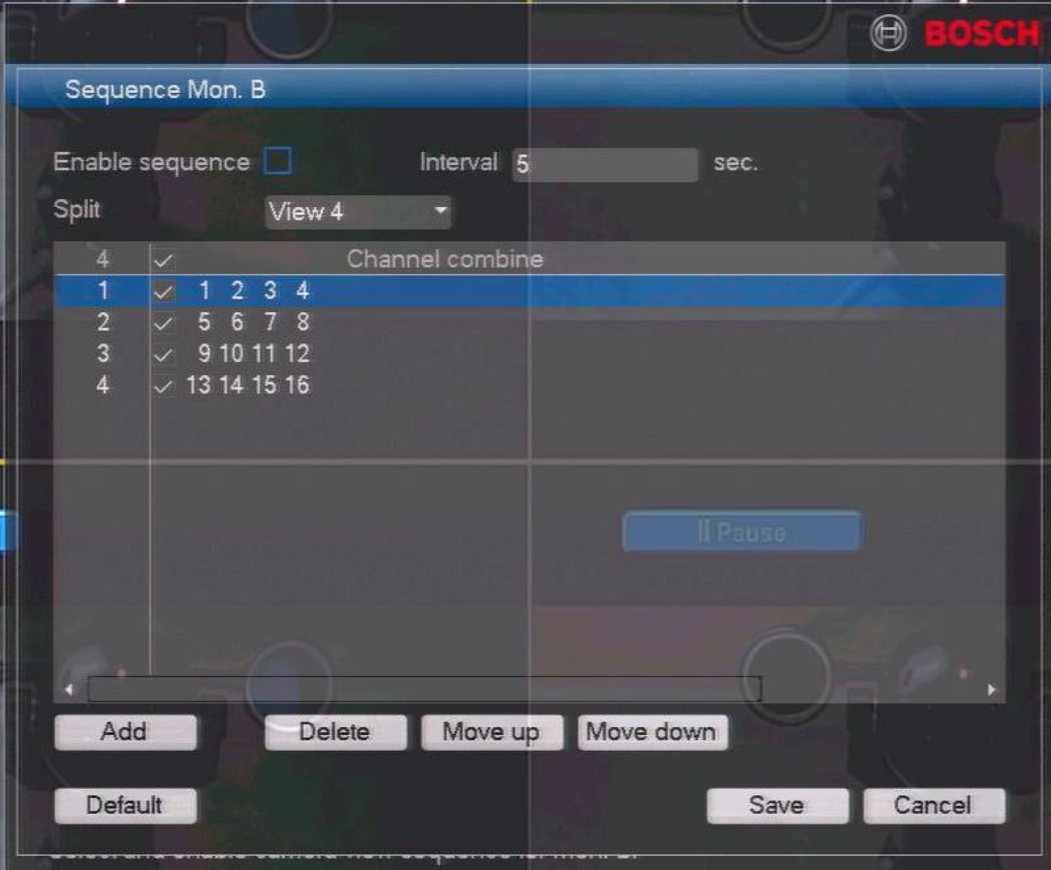

Select Main Menu –> Advanced –> Sequence Mon. B

• Everything that is selected in all of the “Split” views is what is going to be displayed. If video from only one camera is wanted, make sure all cameras/views are unchecked in all other views.

  • Select the “Enable sequence” box
  • Interval: This value ranges from 5 (default) to 120 seconds and is used if more than one camera/view is selected in the “Split” selection
  • Split: Choose here which tour combination is displayed (1, 4, 8, 9 and 16 windows). If required, use the Add, Delete, Move up or Move down buttons to adjust the view settings.
