How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx)?
During the lifespan of the DIP-74xx, there may arise a need to update the BIOS, but this will only be necessary if mandated by development. In such cases, a BIOS update file will be provided through development/product management channels.
Note
Updating the BIOS will reset the BIOS password to the default version.
See here: Where to find the BIOS default password of DIVAR IP all-in-one 7000 gen4 (DIP-74xx)?
Step-by-step guide
Warning
Do not turn off or restart the DIVAR IP all-in-one during the BIOS update. An incomplete or incorrect BIOS update can severally affect the functionality of device or permanently damage it.

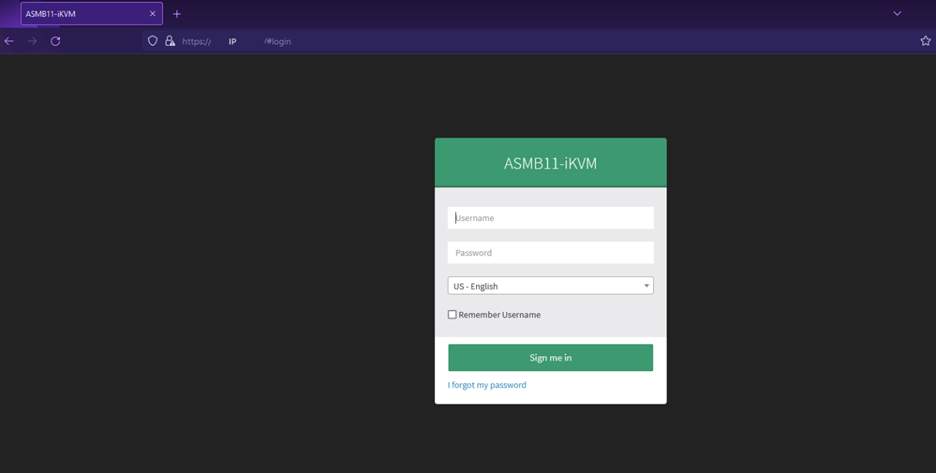

Open a web browser and enter the IP address of the DIVAR IP BMC. This will display the login page where you can enter your login credentials.
.jpg?inst-v=351b8a5d-2311-4dca-936f-5d1e8b7ab61e)

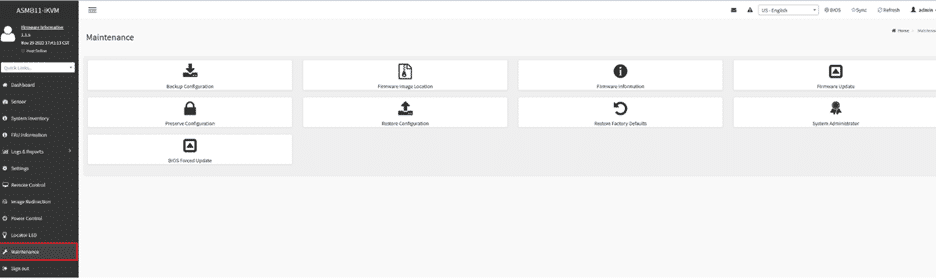

Select the "Maintenance" option from the left-hand menu.
.png?inst-v=351b8a5d-2311-4dca-936f-5d1e8b7ab61e)

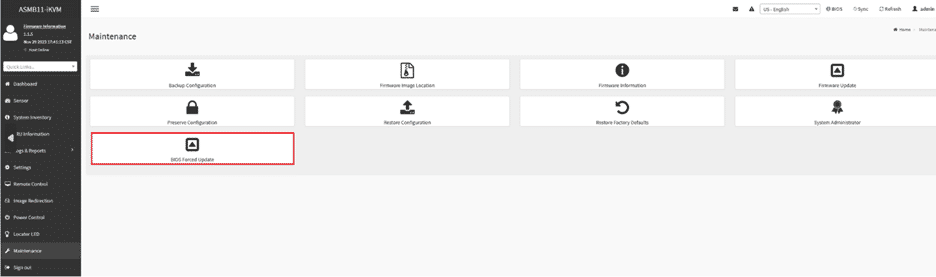

Choose the "BIOS Forced Update" option.
.png?inst-v=351b8a5d-2311-4dca-936f-5d1e8b7ab61e)

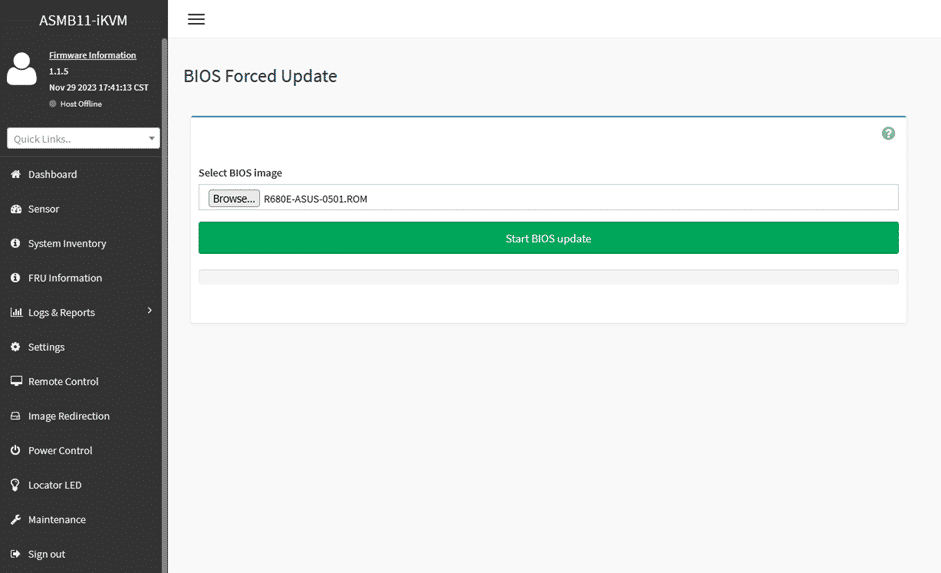

Click on "Browse" to search for and select the BIOS ROM file.
.png?inst-v=351b8a5d-2311-4dca-936f-5d1e8b7ab61e)

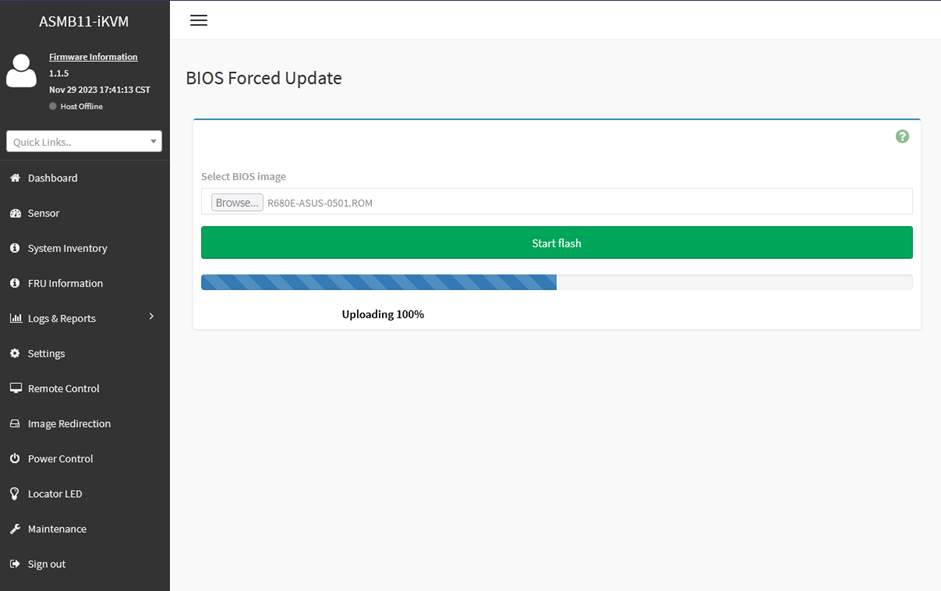

Click on the "Start BIOS update" button and wait for the upload to reach 100%. Then, click on the "Start flash" button.
.jpg?inst-v=351b8a5d-2311-4dca-936f-5d1e8b7ab61e)

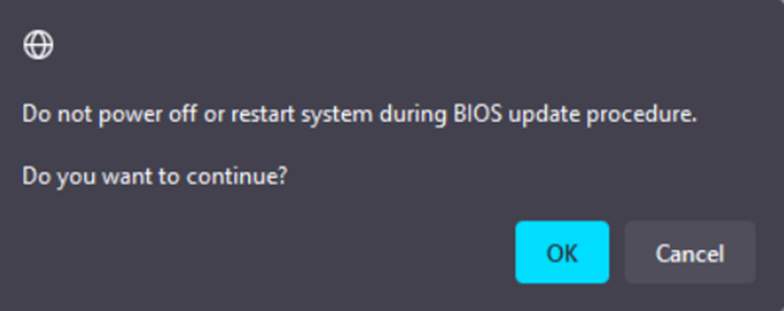

Click on "OK" to confirm the flash procedure.
.jpg?inst-v=351b8a5d-2311-4dca-936f-5d1e8b7ab61e)

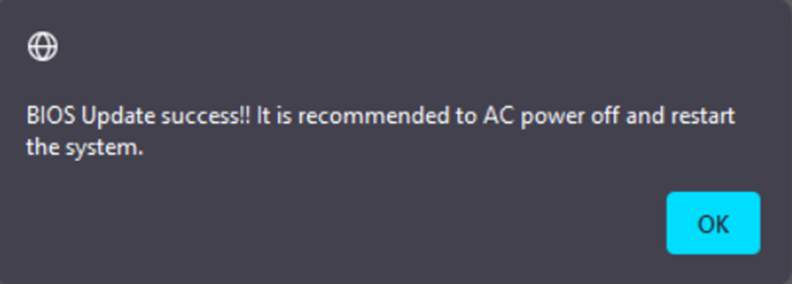

If the update process completes successfully, this pop-up will be displayed.
.jpg?inst-v=351b8a5d-2311-4dca-936f-5d1e8b7ab61e)
