Which is the RCP CGI command for calling desired pre-positions (PTZ) of Bosch IP cameras?
Question
Which is the RCP CGI command for calling desired pre-positions (PTZ) of Bosch IP cameras?
Answer
You can call desired pre-positions (PTZ) of Bosch IP cameras by using OSRD protocol or BiCom protocol. Please find below some examples and detailed explanation:
1. OSRD protocol:
Below is the RCP+ command.
Note that this RCP CGI payload below is using the OSRD protocol. The limitation of this OSRD protocol is that it can only support maximum 99 pre-positions. (this OSRD was used by our Allegiant devices in the past)
http://<IPAddress>/rcp.xml?command=0x09A5&type=P_OCTET&direction=WRITE&num=1&payload=0x80000201B080070563
*Where <IPAddress> is the IP Address of your camera
The last 2 green digits are referring to the pre-position number, but it is the Hexadecimal number of the Pre-position number, as per table below:
| Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | |||||
| Pre-position 1 | 01 | Pre-position 21 | 15 | Pre-position 41 | 29 | Pre-position 61 | 3D | Pre-position 81 | 51 | |||||
| Pre-position 2 | 02 | Pre-position 22 | 16 | Pre-position 42 | 2A | Pre-position 62 | 3E | Pre-position 82 | 52 | |||||
| Pre-position 3 | 03 | Pre-position 23 | 17 | Pre-position 43 | 2B | Pre-position 63 | 3F | Pre-position 83 | 53 | |||||
| Pre-position 4 | 04 | Pre-position 24 | 18 | Pre-position 44 | 2C | Pre-position 64 | 40 | Pre-position 84 | 54 | |||||
| Pre-position 5 | 05 | Pre-position 25 | 19 | Pre-position 45 | 2D | Pre-position 65 | 41 | Pre-position 85 | 55 | |||||
| Pre-position 6 | 06 | Pre-position 26 | 1A | Pre-position 46 | 2E | Pre-position 66 | 42 | Pre-position 86 | 56 | |||||
| Pre-position 7 | 07 | Pre-position 27 | 1B | Pre-position 47 | 2F | Pre-position 67 | 43 | Pre-position 87 | 57 | |||||
| Pre-position 8 | 08 | Pre-position 28 | 1C | Pre-position 48 | 30 | Pre-position 68 | 44 | Pre-position 88 | 58 | |||||
| Pre-position 9 | 09 | Pre-position 29 | 1D | Pre-position 49 | 31 | Pre-position 69 | 45 | Pre-position 89 | 59 | |||||
| Pre-position 10 | 0A | Pre-position 30 | 1E | Pre-position 50 | 32 | Pre-position 70 | 46 | Pre-position 90 | 5A | |||||
| Pre-position 11 | 0B | Pre-position 31 | 1F | Pre-position 51 | 33 | Pre-position 71 | 47 | Pre-position 91 | 5B | |||||
| Pre-position 12 | 0C | Pre-position 32 | 20 | Pre-position 52 | 34 | Pre-position 72 | 48 | Pre-position 92 | 5C | |||||
| Pre-position 13 | 0D | Pre-position 33 | 21 | Pre-position 53 | 35 | Pre-position 73 | 49 | Pre-position 93 | 5D | |||||
| Pre-position 14 | 0E | Pre-position 34 | 22 | Pre-position 54 | 36 | Pre-position 74 | 4A | Pre-position 94 | 5E | |||||
| Pre-position 15 | 0F | Pre-position 35 | 23 | Pre-position 55 | 37 | Pre-position 75 | 4B | Pre-position 95 | 5F | |||||
| Pre-position 16 | 10 | Pre-position 36 | 24 | Pre-position 56 | 38 | Pre-position 76 | 4C | Pre-position 96 | 60 | |||||
| Pre-position 17 | 11 | Pre-position 37 | 25 | Pre-position 57 | 39 | Pre-position 77 | 4D | Pre-position 97 | 61 | |||||
| Pre-position 18 | 12 | Pre-position 38 | 26 | Pre-position 58 | 3A | Pre-position 78 | 4E | Pre-position 98 | 62 | |||||
| Pre-position 19 | 13 | Pre-position 39 | 27 | Pre-position 59 | 3B | Pre-position 79 | 4F | Pre-position 99 | 63 | |||||
| Pre-position 20 | 14 | Pre-position 40 | 28 | Pre-position 60 | 3C | Pre-position 80 | 50 |
Samples:

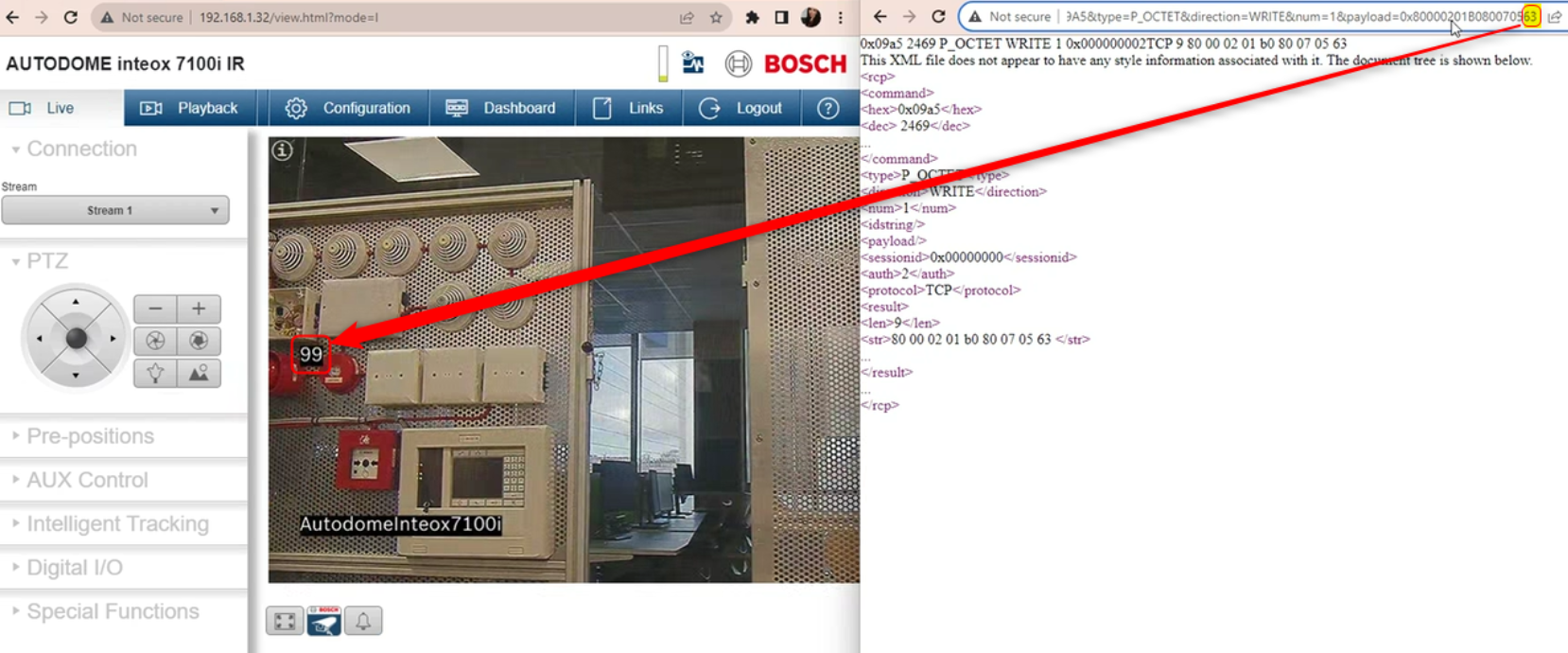

- Pre-position 99:

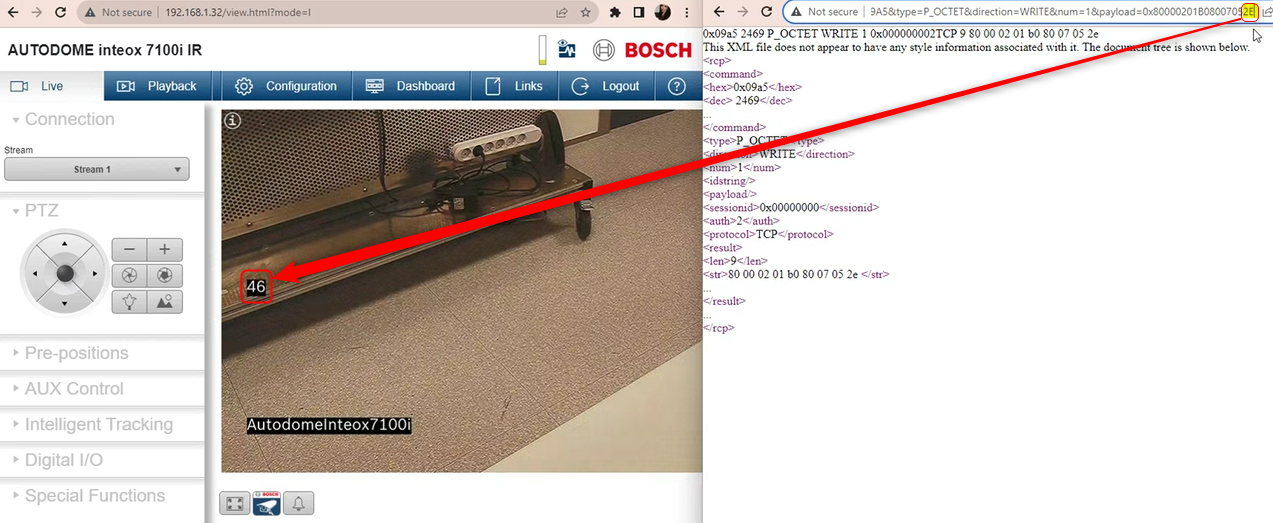

- Pre-position 46:
2. BiCom protocol:
For Bosch IP cameras, you can also use BiCom as the payload instead of RCP CGI payload above.
The BiCom protocol can supports up to 256 pre-positions.
http://<IPAddress>/rcp.xml?command=0x09A5&type=P_OCTET&direction=WRITE&num=1&payload=0x800006200081
*Where <IPAddress> is the IP Address of your camera
The 2 green digits are referring to the pre-position number, but it is the Hexadecimal number of the Pre-position number, as per table below:
| Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | ||||||
| Pre-position 1 | 00 | Pre-position 21 | 14 | Pre-position 41 | 28 | Pre-position 61 | 3C | Pre-position 81 | 50 | Pre-position 101 | 64 | Pre-position 121 | 78 | ||||||
| Pre-position 2 | 01 | Pre-position 22 | 15 | Pre-position 42 | 29 | Pre-position 62 | 3D | Pre-position 82 | 51 | Pre-position 102 | 65 | Pre-position 122 | 79 | ||||||
| Pre-position 3 | 02 | Pre-position 23 | 16 | Pre-position 43 | 2A | Pre-position 63 | 3E | Pre-position 83 | 52 | Pre-position 103 | 66 | Pre-position 123 | 7A | ||||||
| Pre-position 4 | 03 | Pre-position 24 | 17 | Pre-position 44 | 2B | Pre-position 64 | 3F | Pre-position 84 | 53 | Pre-position 104 | 67 | Pre-position 124 | 7B | ||||||
| Pre-position 5 | 04 | Pre-position 25 | 18 | Pre-position 45 | 2C | Pre-position 65 | 40 | Pre-position 85 | 54 | Pre-position 105 | 68 | Pre-position 125 | 7C | ||||||
| Pre-position 6 | 05 | Pre-position 26 | 19 | Pre-position 46 | 2D | Pre-position 66 | 41 | Pre-position 86 | 55 | Pre-position 106 | 69 | Pre-position 126 | 7D | ||||||
| Pre-position 7 | 06 | Pre-position 27 | 1A | Pre-position 47 | 2E | Pre-position 67 | 42 | Pre-position 87 | 56 | Pre-position 107 | 6A | Pre-position 127 | 7E | ||||||
| Pre-position 8 | 07 | Pre-position 28 | 1B | Pre-position 48 | 2F | Pre-position 68 | 43 | Pre-position 88 | 57 | Pre-position 108 | 6B | Pre-position 128 | 7F | ||||||
| Pre-position 9 | 08 | Pre-position 29 | 1C | Pre-position 49 | 30 | Pre-position 69 | 44 | Pre-position 89 | 58 | Pre-position 109 | 6C | Pre-position 129 | 80 | ||||||
| Pre-position 10 | 09 | Pre-position 30 | 1D | Pre-position 50 | 31 | Pre-position 70 | 45 | Pre-position 90 | 59 | Pre-position 110 | 6D | Pre-position 130 | 81 | ||||||
| Pre-position 11 | 0A | Pre-position 31 | 1E | Pre-position 51 | 32 | Pre-position 71 | 46 | Pre-position 91 | 5A | Pre-position 111 | 6E | Pre-position 131 | 82 | ||||||
| Pre-position 12 | 0B | Pre-position 32 | 1F | Pre-position 52 | 33 | Pre-position 72 | 47 | Pre-position 92 | 5B | Pre-position 112 | 6F | Pre-position 132 | 83 | ||||||
| Pre-position 13 | 0C | Pre-position 33 | 20 | Pre-position 53 | 34 | Pre-position 73 | 48 | Pre-position 93 | 5C | Pre-position 113 | 70 | Pre-position 133 | 84 | ||||||
| Pre-position 14 | 0D | Pre-position 34 | 21 | Pre-position 54 | 35 | Pre-position 74 | 49 | Pre-position 94 | 5D | Pre-position 114 | 71 | Pre-position 134 | 85 | ||||||
| Pre-position 15 | 0E | Pre-position 35 | 22 | Pre-position 55 | 36 | Pre-position 75 | 4A | Pre-position 95 | 5E | Pre-position 115 | 72 | Pre-position 135 | 86 | ||||||
| Pre-position 16 | 0F | Pre-position 36 | 23 | Pre-position 56 | 37 | Pre-position 76 | 4B | Pre-position 96 | 5F | Pre-position 116 | 73 | Pre-position 136 | 87 | ||||||
| Pre-position 17 | 10 | Pre-position 37 | 24 | Pre-position 57 | 38 | Pre-position 77 | 4C | Pre-position 97 | 60 | Pre-position 117 | 74 | Pre-position 137 | 88 | ||||||
| Pre-position 18 | 11 | Pre-position 38 | 25 | Pre-position 58 | 39 | Pre-position 78 | 4D | Pre-position 98 | 61 | Pre-position 118 | 75 | Pre-position 138 | 89 | ||||||
| Pre-position 19 | 12 | Pre-position 39 | 26 | Pre-position 59 | 3A | Pre-position 79 | 4E | Pre-position 99 | 62 | Pre-position 119 | 76 | Pre-position 139 | 8A | ||||||
| Pre-position 20 | 13 | Pre-position 40 | 27 | Pre-position 60 | 3B | Pre-position 80 | 4F | Pre-position 100 | 63 | Pre-position 120 | 77 | Pre-position 140 | 8B | ||||||
| Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | Prep | Hex | ||||||||
| Pre-position 141 | 8C | Pre-position 161 | A0 | Pre-position 181 | B4 | Pre-position 201 | C8 | Pre-position 221 | DC | Pre-position 241 | F0 | ||||||||
| Pre-position 142 | 8D | Pre-position 162 | A1 | Pre-position 182 | B5 | Pre-position 202 | C9 | Pre-position 222 | DD | Pre-position 242 | F1 | ||||||||
| Pre-position 143 | 8E | Pre-position 163 | A2 | Pre-position 183 | B6 | Pre-position 203 | CA | Pre-position 223 | DE | Pre-position 243 | F2 | ||||||||
| Pre-position 144 | 8F | Pre-position 164 | A3 | Pre-position 184 | B7 | Pre-position 204 | CB | Pre-position 224 | DF | Pre-position 244 | F3 | ||||||||
| Pre-position 145 | 90 | Pre-position 165 | A4 | Pre-position 185 | B8 | Pre-position 205 | CC | Pre-position 225 | E0 | Pre-position 245 | F4 | ||||||||
| Pre-position 146 | 91 | Pre-position 166 | A5 | Pre-position 186 | B9 | Pre-position 206 | CD | Pre-position 226 | E1 | Pre-position 246 | F5 | ||||||||
| Pre-position 147 | 92 | Pre-position 167 | A6 | Pre-position 187 | BA | Pre-position 207 | CE | Pre-position 227 | E2 | Pre-position 247 | F6 | ||||||||
| Pre-position 148 | 93 | Pre-position 168 | A7 | Pre-position 188 | BB | Pre-position 208 | CF | Pre-position 228 | E3 | Pre-position 248 | F7 | ||||||||
| Pre-position 149 | 94 | Pre-position 169 | A8 | Pre-position 189 | BC | Pre-position 209 | D0 | Pre-position 229 | E4 | Pre-position 249 | F8 | ||||||||
| Pre-position 150 | 95 | Pre-position 170 | A9 | Pre-position 190 | BD | Pre-position 210 | D1 | Pre-position 230 | E5 | Pre-position 250 | F9 | ||||||||
| Pre-position 151 | 96 | Pre-position 171 | AA | Pre-position 191 | BE | Pre-position 211 | D2 | Pre-position 231 | E6 | Pre-position 251 | FA | ||||||||
| Pre-position 152 | 97 | Pre-position 172 | AB | Pre-position 192 | BF | Pre-position 212 | D3 | Pre-position 232 | E7 | Pre-position 252 | FB | ||||||||
| Pre-position 153 | 98 | Pre-position 173 | AC | Pre-position 193 | C0 | Pre-position 213 | D4 | Pre-position 233 | E8 | Pre-position 253 | FC | ||||||||
| Pre-position 154 | 99 | Pre-position 174 | AD | Pre-position 194 | C1 | Pre-position 214 | D5 | Pre-position 234 | E9 | Pre-position 254 | FD | ||||||||
| Pre-position 155 | 9A | Pre-position 175 | AE | Pre-position 195 | C2 | Pre-position 215 | D6 | Pre-position 235 | EA | Pre-position 255 | FE | ||||||||
| Pre-position 156 | 9B | Pre-position 176 | AF | Pre-position 196 | C3 | Pre-position 216 | D7 | Pre-position 236 | EB | Pre-position 256 | FF | ||||||||
| Pre-position 157 | 9C | Pre-position 177 | B0 | Pre-position 197 | C4 | Pre-position 217 | D8 | Pre-position 237 | EC | ||||||||||
| Pre-position 158 | 9D | Pre-position 178 | B1 | Pre-position 198 | C5 | Pre-position 218 | D9 | Pre-position 238 | ED | ||||||||||
| Pre-position 159 | 9E | Pre-position 179 | B2 | Pre-position 199 | C6 | Pre-position 219 | DA | Pre-position 239 | EE | ||||||||||
| Pre-position 160 | 9F | Pre-position 180 | B3 | Pre-position 200 | C7 | Pre-position 220 | DB | Pre-position 240 | EF |
Samples:
- Pre-position 1:

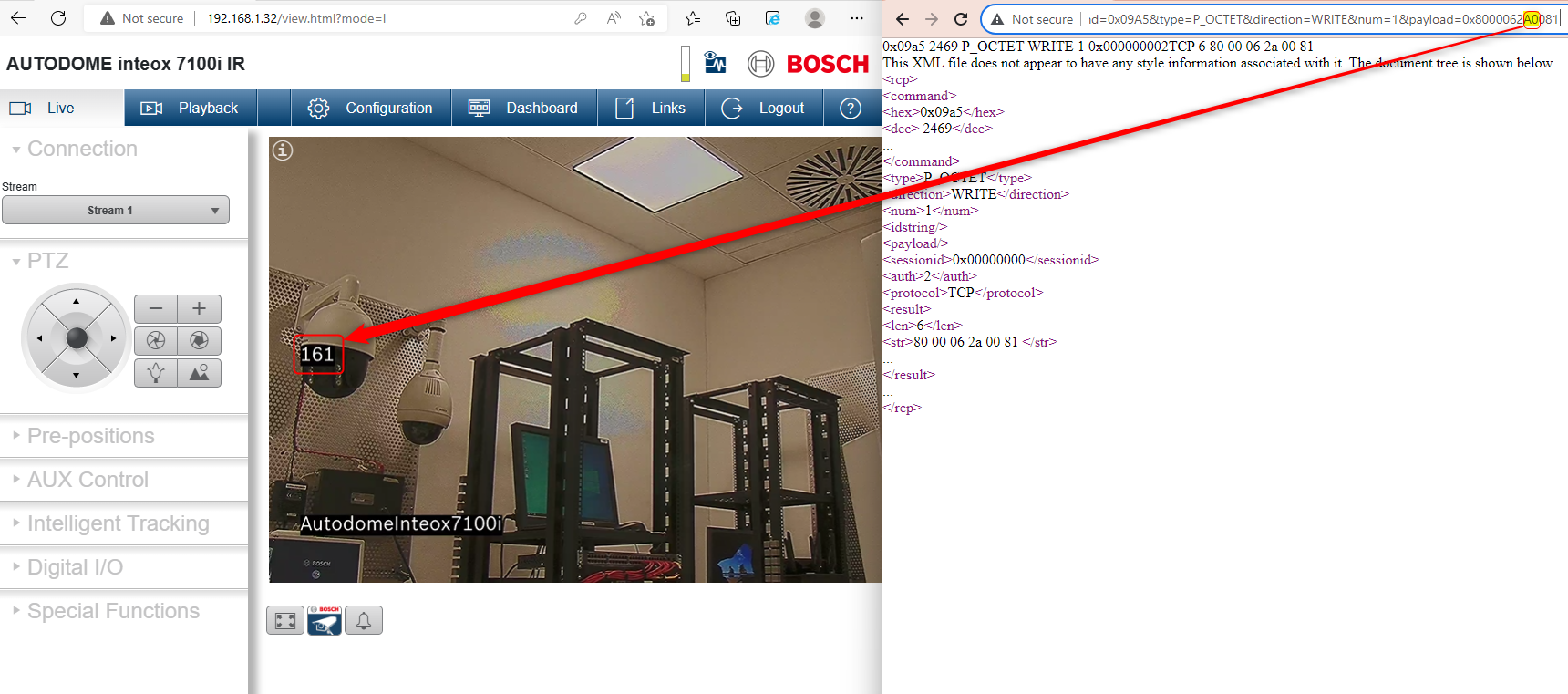

- Pre-position 161:
Useful:

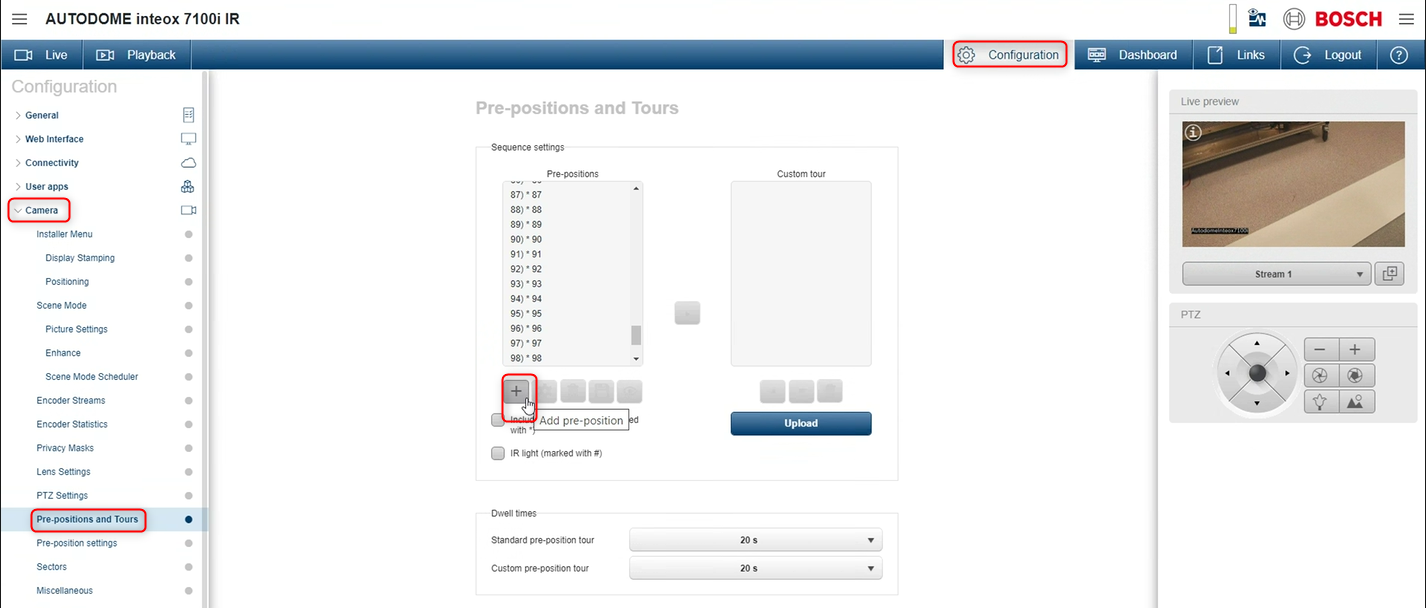

You can define your pre-positions in Configuration > Camera > Pre-positions and Tours menu:
