How to send HTTP request to VRM to provide the list with trackId(s) and how to read the response?

Using RCP command 0xD007, you can retrieve the list of Track IDs from a Bosch VRM via a simple HTTP request. Although the response is wrapped in XML, the actual content is binary data that must be decoded according to the Bosch RCP specification.

Understanding the block structure and encoding rules allows you to reliably extract Track IDs, camera names, and related metadata for further integration or troubleshooting tasks.

Step-by-step guide

Get the trackId from VRM
Rcpp command send via the Http

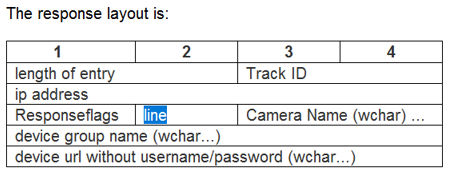

This is pasted from the VRM Interface Documentation

-----------------------------------------------------

D007

To request the list of tracks from the VRM, send an HTTP GET request to the rcp.xml endpoint using RCP command 0xD007.

Example Request:

https://172.16.50.102/rcp.xml?command=0xd007&type=P_OCTET&direction=READ

Response:

How to read it.

There are 4 Blocks in this response.

Block 1:

Length - 00 80 => 80 bytes
Track id - 00 a0 (hex) => track id is 160 (decimal) (see Hex to Decimal Converter)
Ip 13 32 10 ac => 19.50.16.172 Please note the network byte order of IP address here
00 => Flags
01 =>Line => this is the video input 1 (coax) of a multichannel encoder. (= always 1 in case of a camera)

CameraUnderTestOne (in UTF-16: see From Hex - CyberChef) = 00 43 00 61 00 6d 00 65 00 72 00 61 00 55 00 6e 00 64 00 65 00 72 00 54 00 65 00 73 00 74 00 4f 00 6e 00 65

________________________________________

00 43 00 61 00 6d 00 65 00 72 00 61:

43 = C

61 = a

6d = m

65 = e

72 = r

61 = a

Together → "Camera"
