How to configure Remote Portal to access your Bosch camera through Video Security App?
Remote Portal is an useful tool where you can administrate, do remote configuration, remote viewing, remote maintenance and it has a very nice way of adding new features and services solution. It’s a simple way to connect a local camera to the Remote Portal and to the end user interface.
This article describes step-by-step how you can configure the Remote Portal in order to access the Bosch camera from your tablet or mobile phone via Video Security App.
Article requirements
Configuration Manager
Valid account on Remote Portal
Camera
PC
Tablet/ mobile phone where Video Security Client (VSC) App is installed
Step-by-step guide
Add camera into Remote Portal
A. Connect camera to the Bosch Cloud
In order to make sure that your camera can connect to the Bosch Cloud, please follow the steps below:
Open Configuration Manager > My devices > login on your camera with its credentials

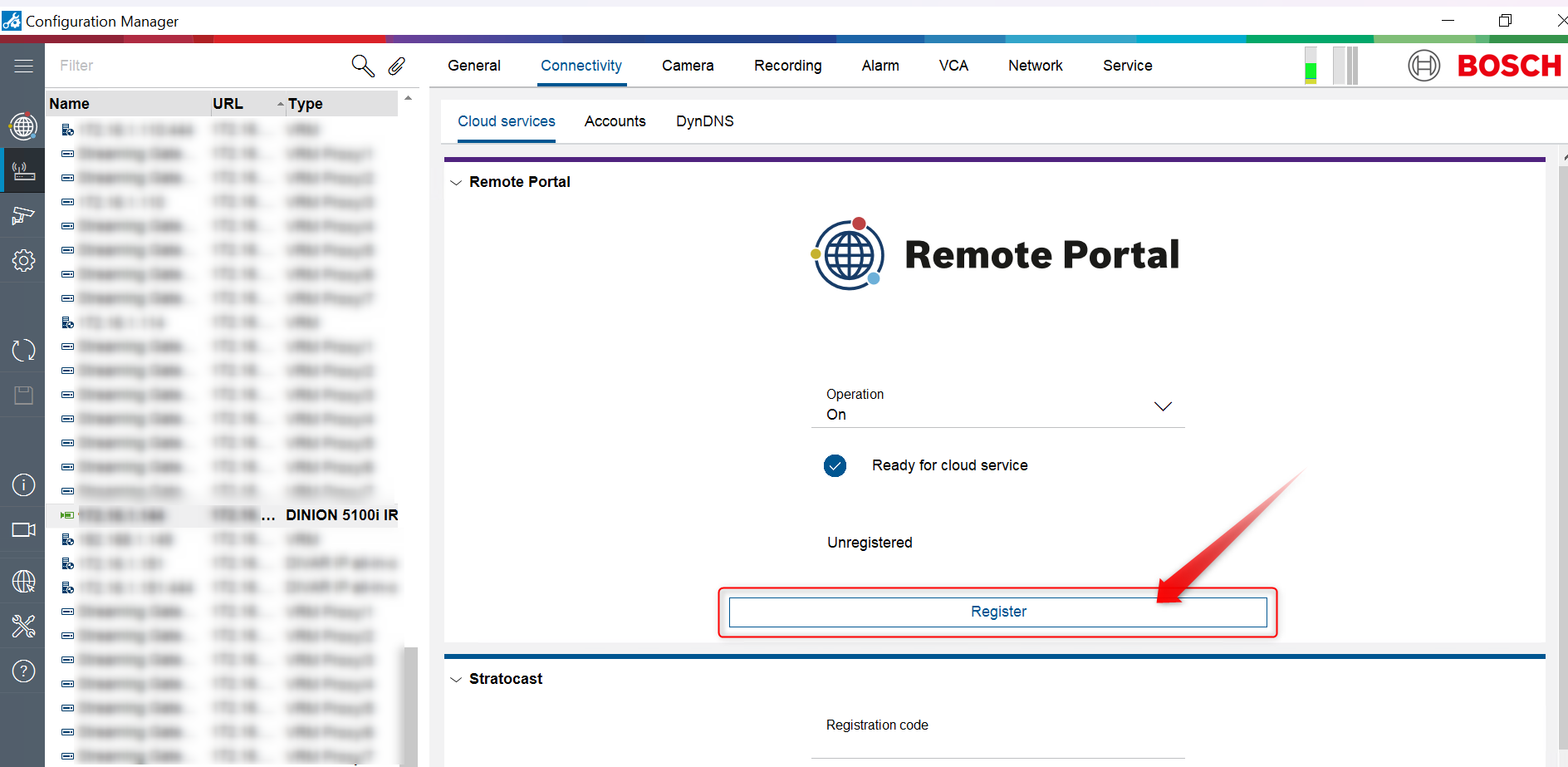

Go to “Connectivity” tab, set Operation to "On", click "Save" and press on “Register” button

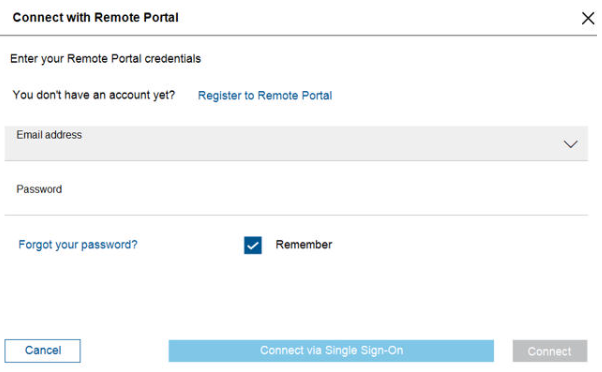

Enter your Remote Portal credentials. If you have no account yet, go to remote.boschsecurity.com to create one
Important
Please be aware that if you have converted your Remote Portal account to Login with Single Sign-on, you will have to select Connect via Single Sign-On. In this article, we'll continue using this option

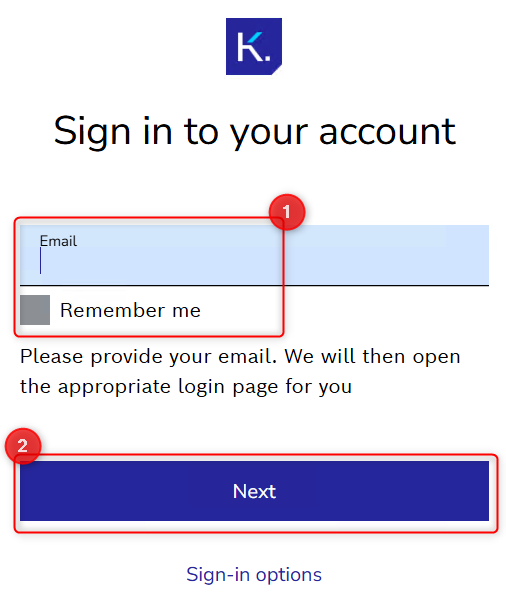

Add your e-mail configured for your Remote Portal account and click Next

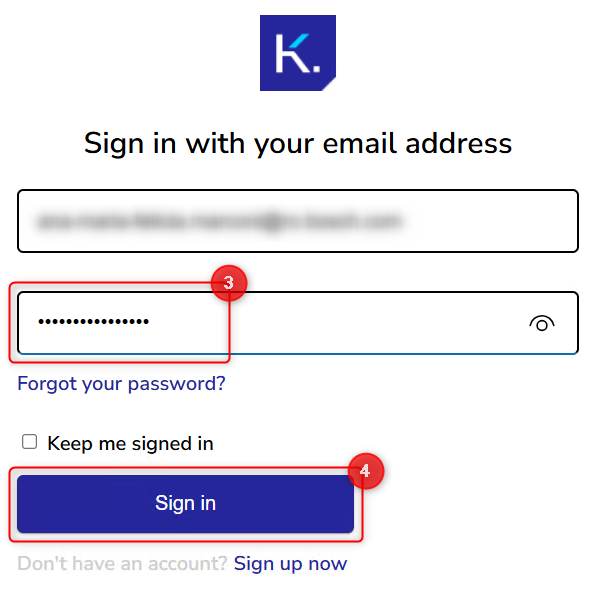

Fill in the password and click Sign in

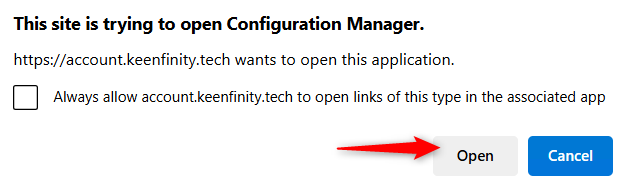

Click Open

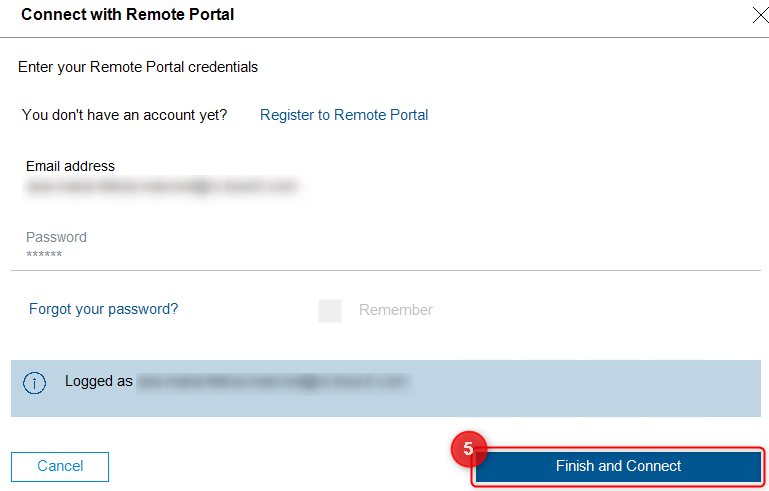

If you have multiple admin company accounts, select the desired one and click Finish and Connect
In case your credentials are associated with multiple company accounts in Remote Portal, make sure that you have also defined a 'default commissioning company'. Otherwise, the camera does not know which account it belongs to, which prevents a successful registration.
See here how to Configure the Default Commissioning Company

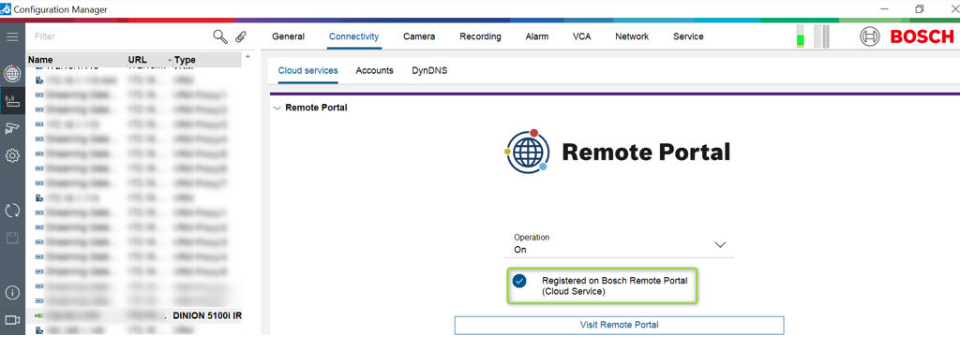

Now, the camera is connected to the Remote Portal.
B. Organize your cameras in Remote Portal in Groups

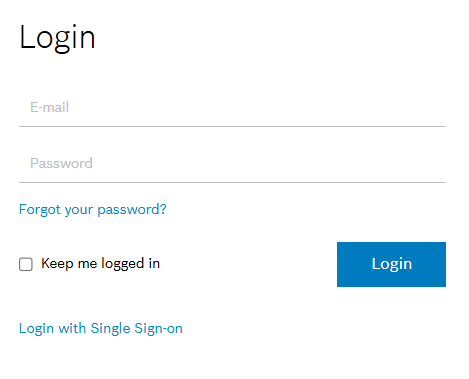

Access Remote Portal and login with your Remote Portal credentials
This action requires Admin rights
Important
Please be aware that if you have converted your Remote Portal account to Login with Single Sign-on, you will have to select Connect via Single Sign-On. In this article, we'll continue using this option

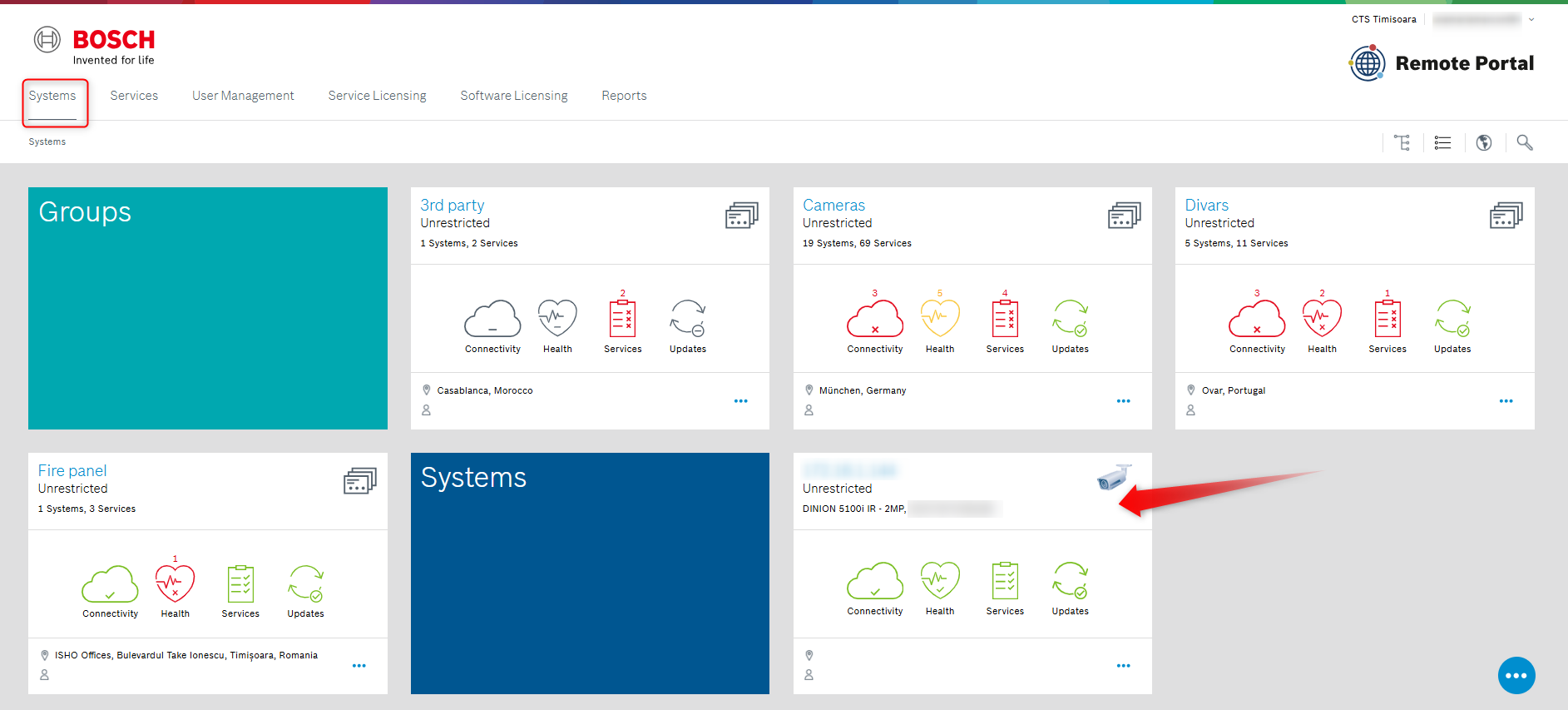

Select “Systems” tab. Your camera will be displayed here:

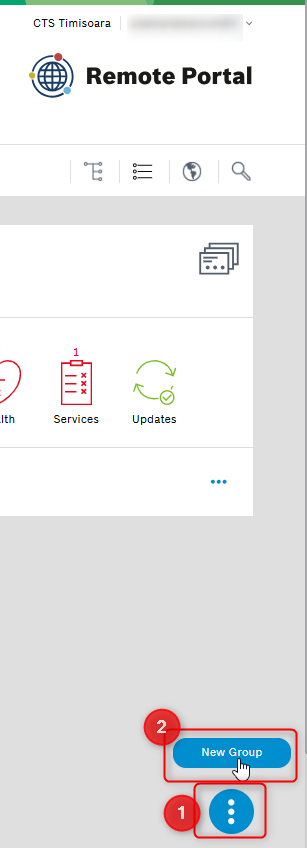

Then, press “
” button from the bottom right side > click New Group

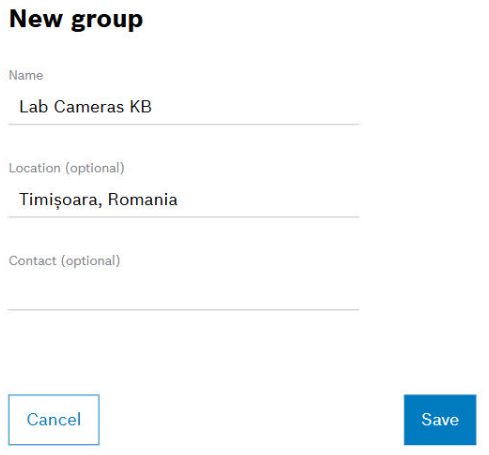

Name the group. You can add the contact person and the Location where the camera is located > Save

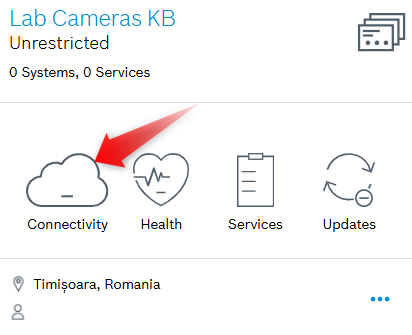

You will see that there is no connectivity displayed. This is because no camera was added for the new group

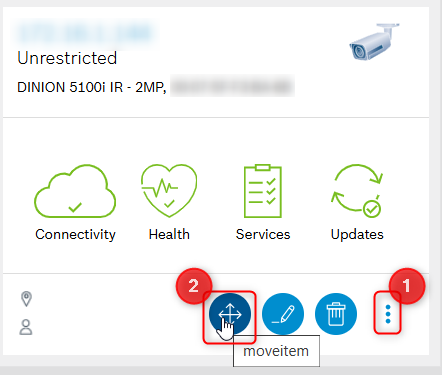

In order to assign the camera to the new group, press on the 3 dots button > press the “Move” button

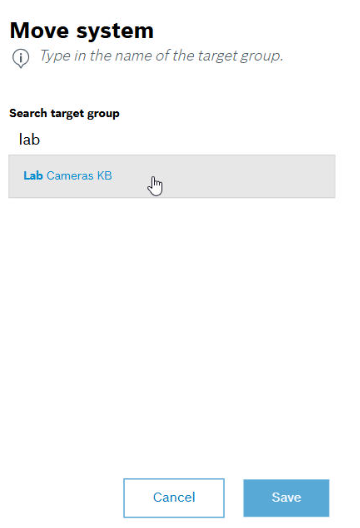

Type in the target group name > select the Group > Save

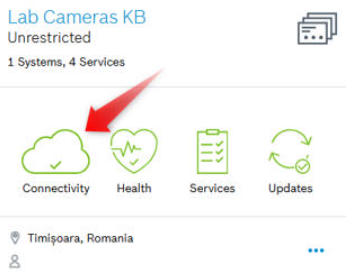

From this point, the camera is now belonging to the group and the connectivity becomes green.
C) Add a Customer user to the Remote Connect service
It is important to add the Customer user to the Remote Connect service for every camera so that he is able to display these cameras on the Video Security App.

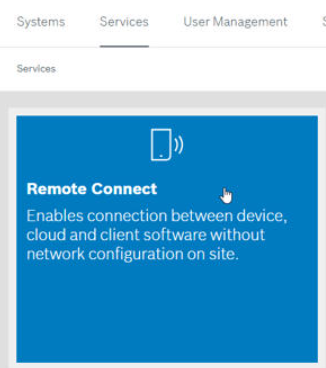

1. Go to Services tab > click on the Remote Connect service card > service details page opens

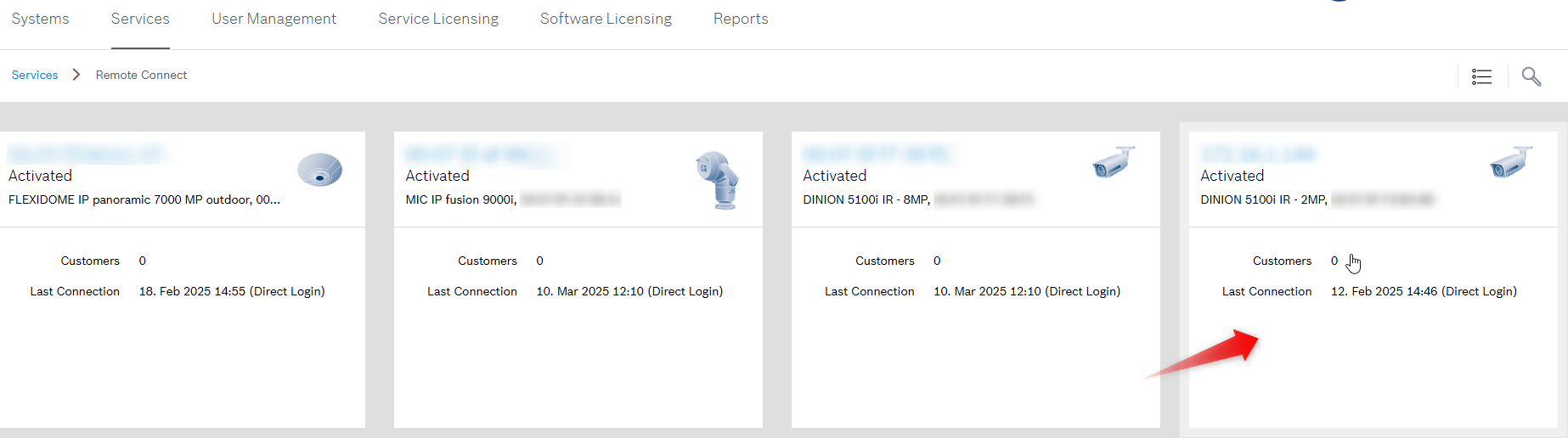

2. Select the camera you want to add a Customer user for:
3. Click on the "
" button> click Add Customer

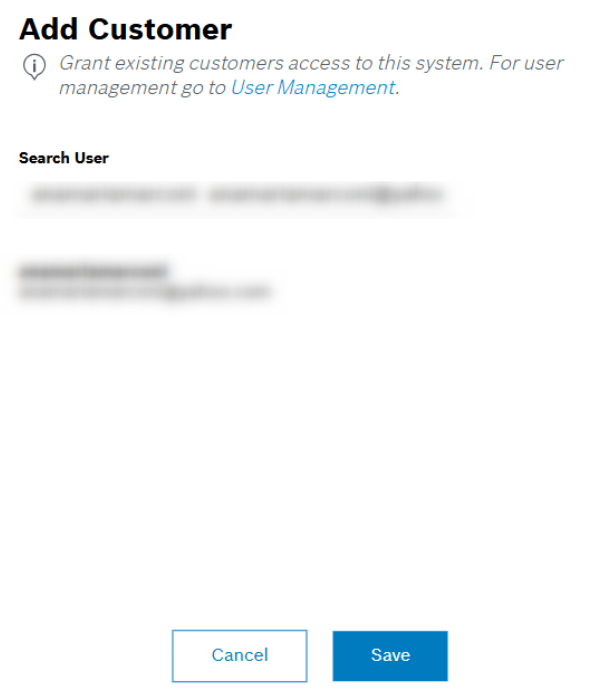

4. Select the related user > click Save.

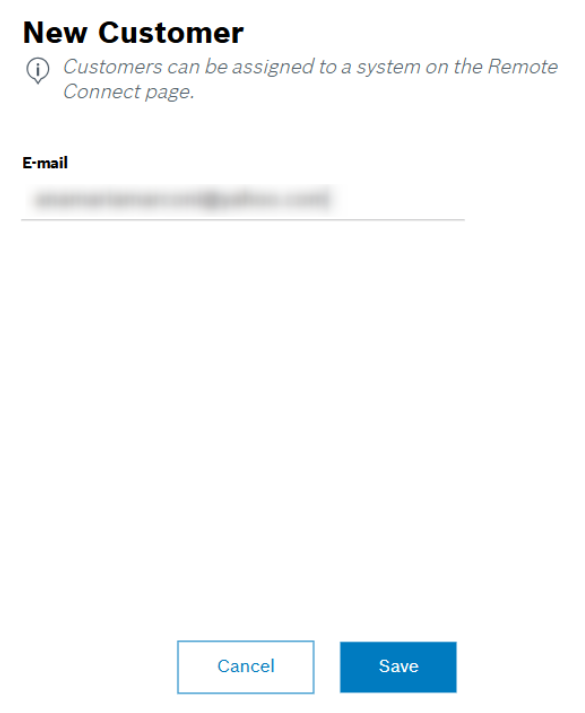

If you don't find the customer's account, then you have to add him in User Management > Click on the "
" button > select New Customer > add the customer's e-mail address > click Save
The customer has to accept the invitation.
5. Now the Customer user can access the device.
D) View camera image via Video Security App as Customer user
In case you have not yet installed the app, you can find it in Download Area
1. Open the App
2. Login with your credentials (Customer user)

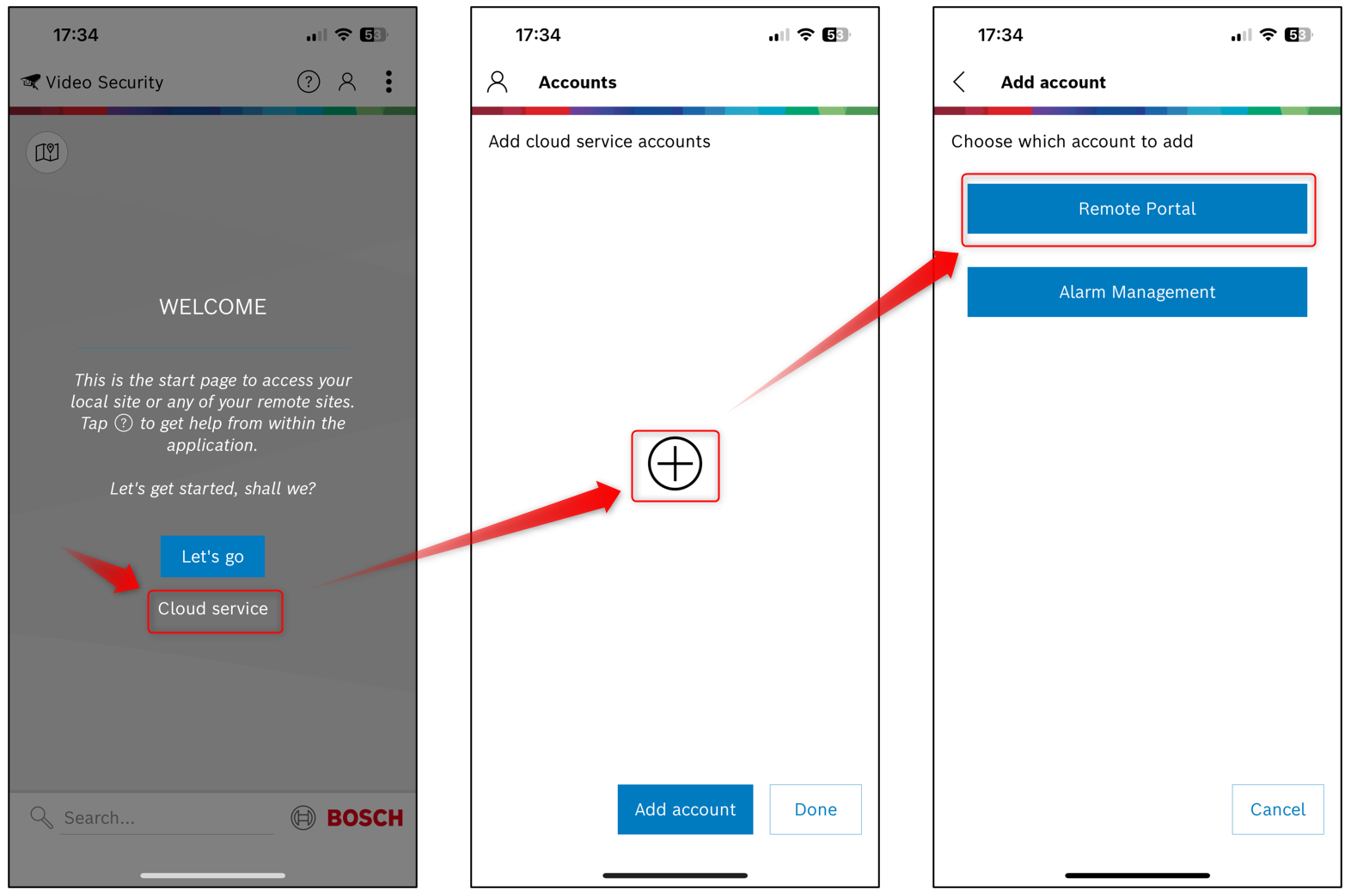

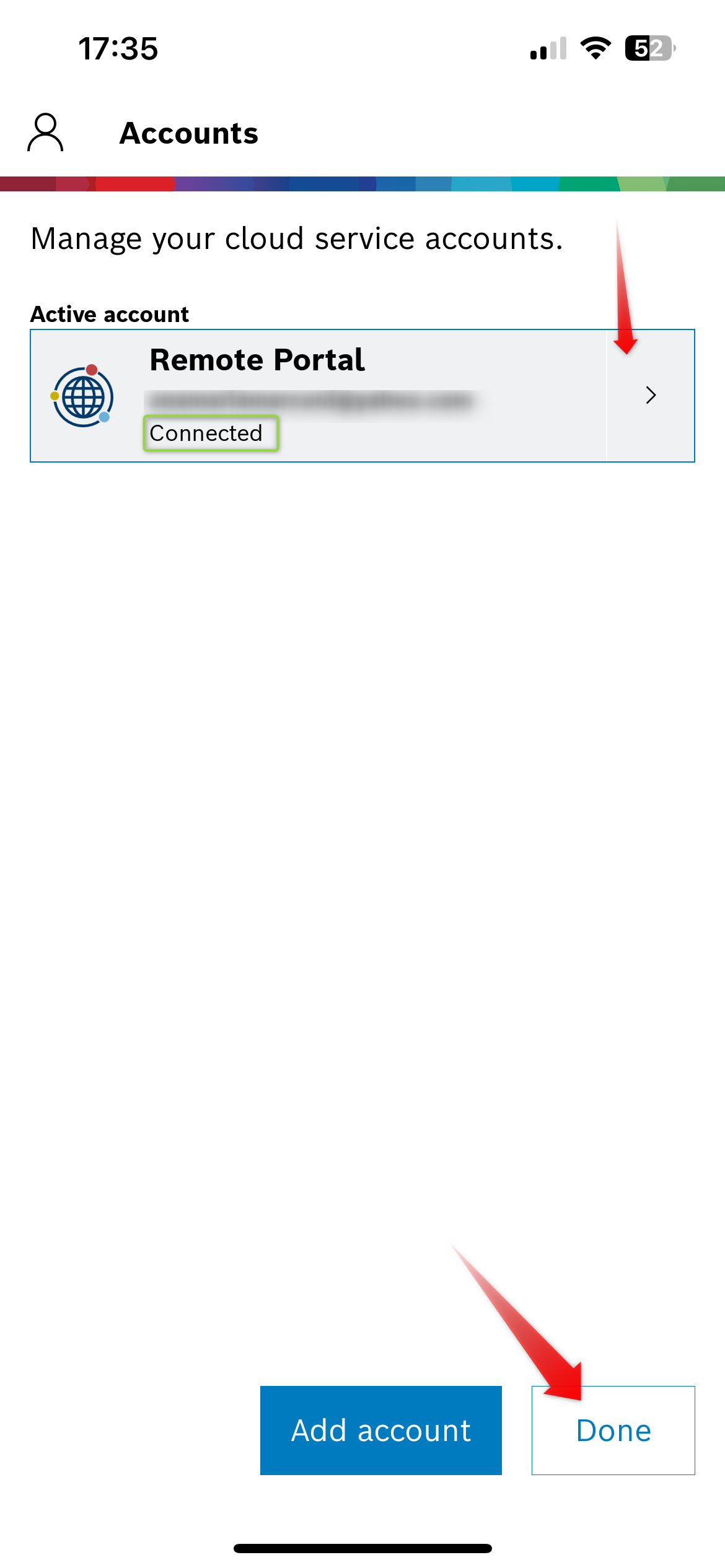

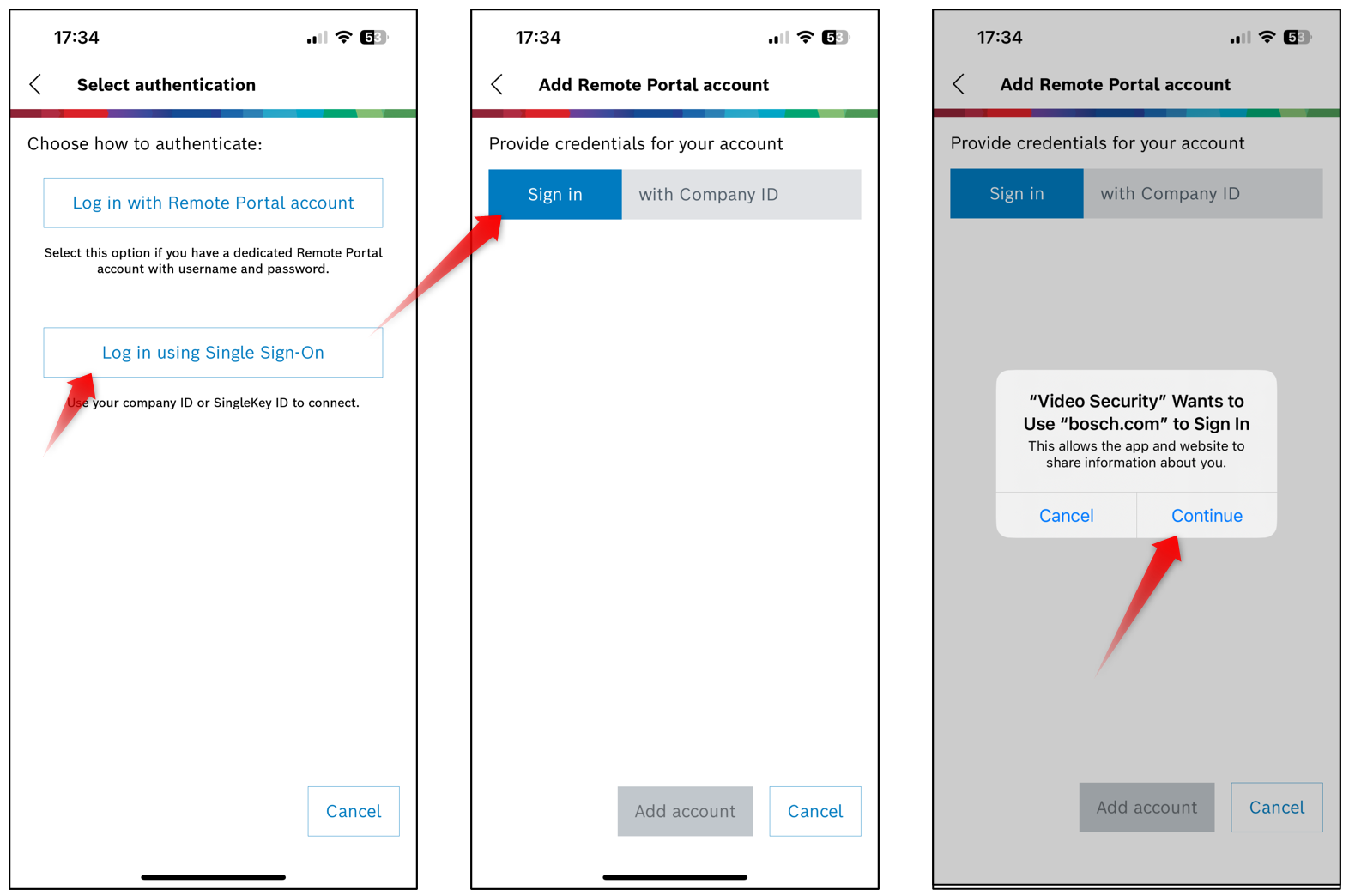

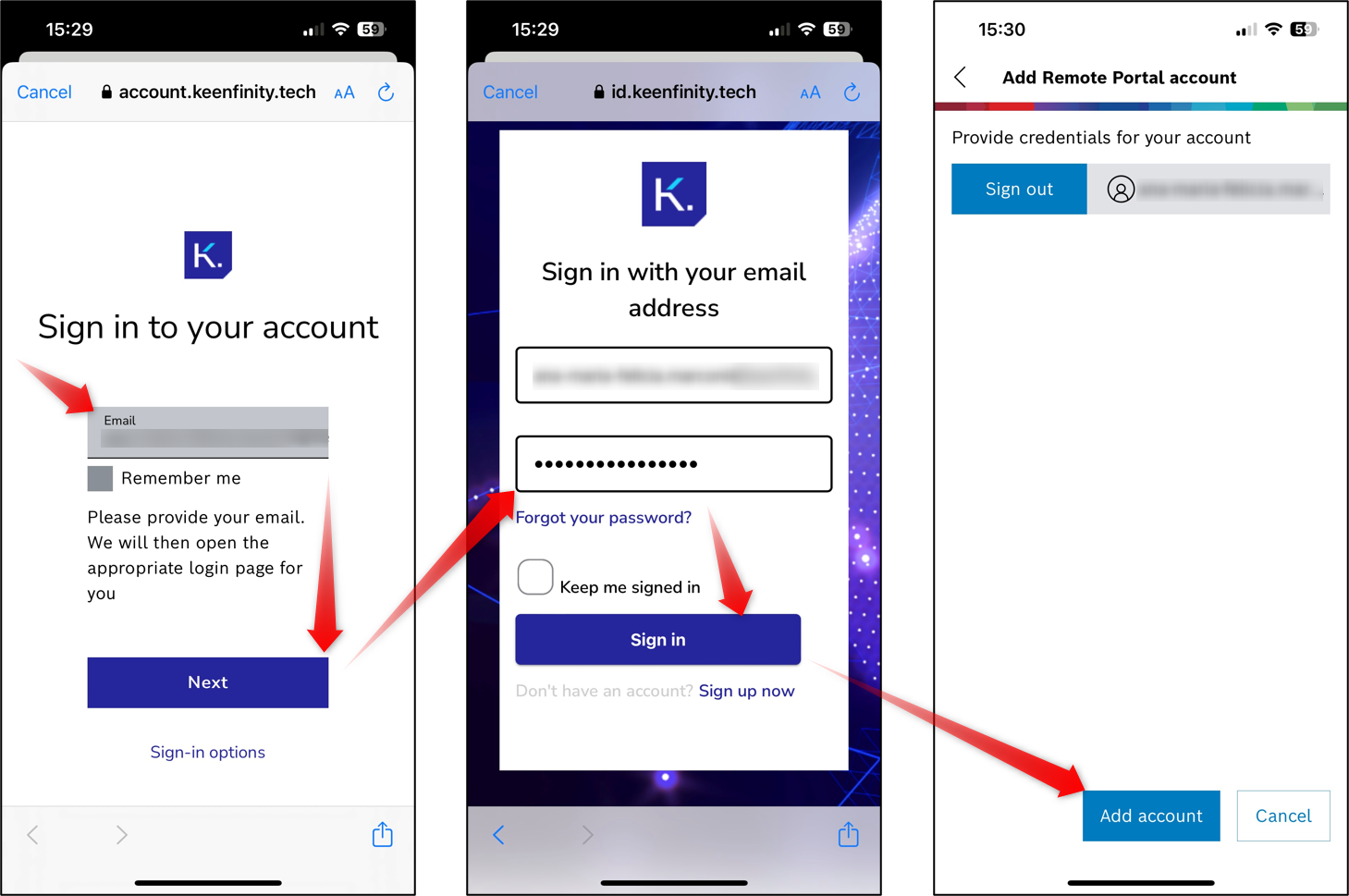

• Press on the Cloud service link > click Add account button > Select Remote Portal > Select Log in using Single Sign-On > click Sign in > Continue > Complete your credentials > Continue> Add account > You will be connected to the Remote Portal > Done

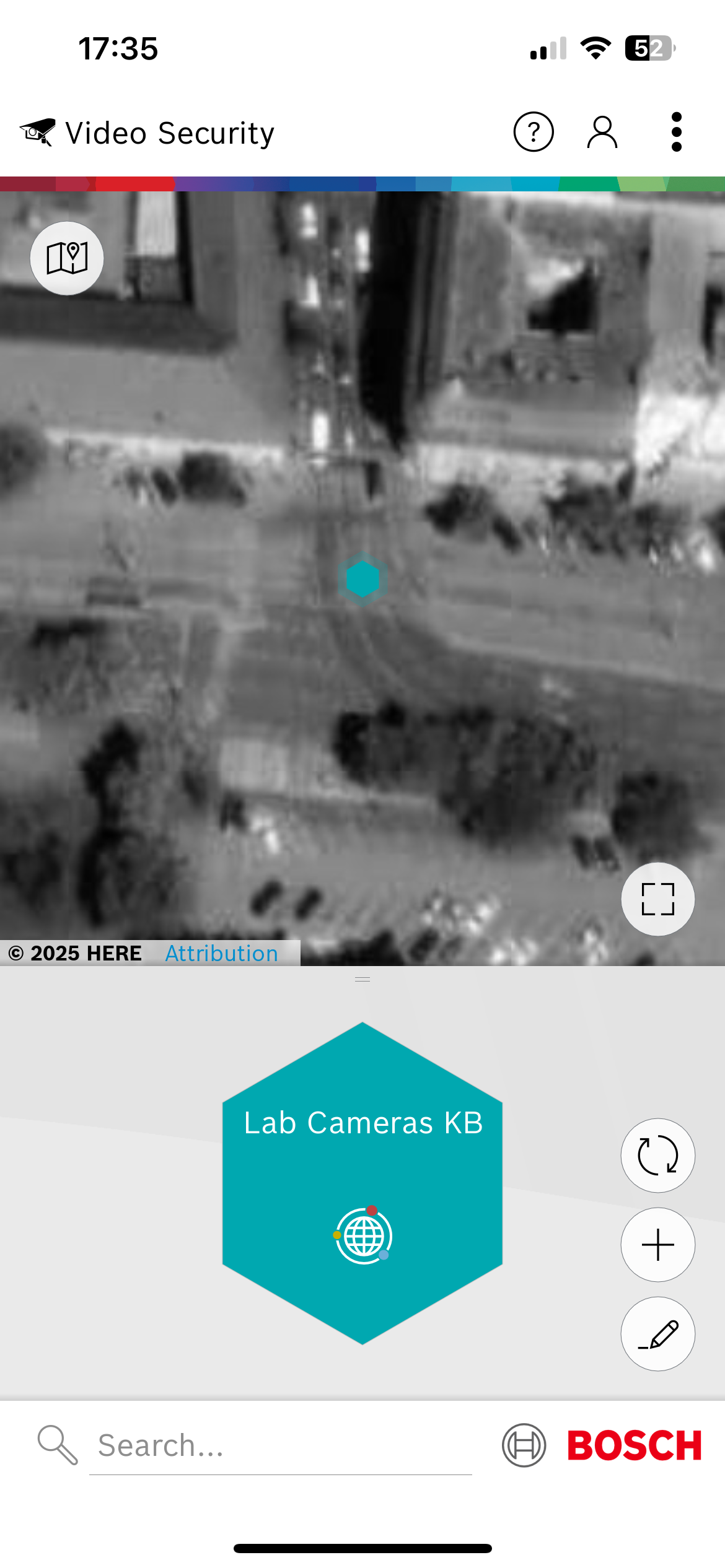

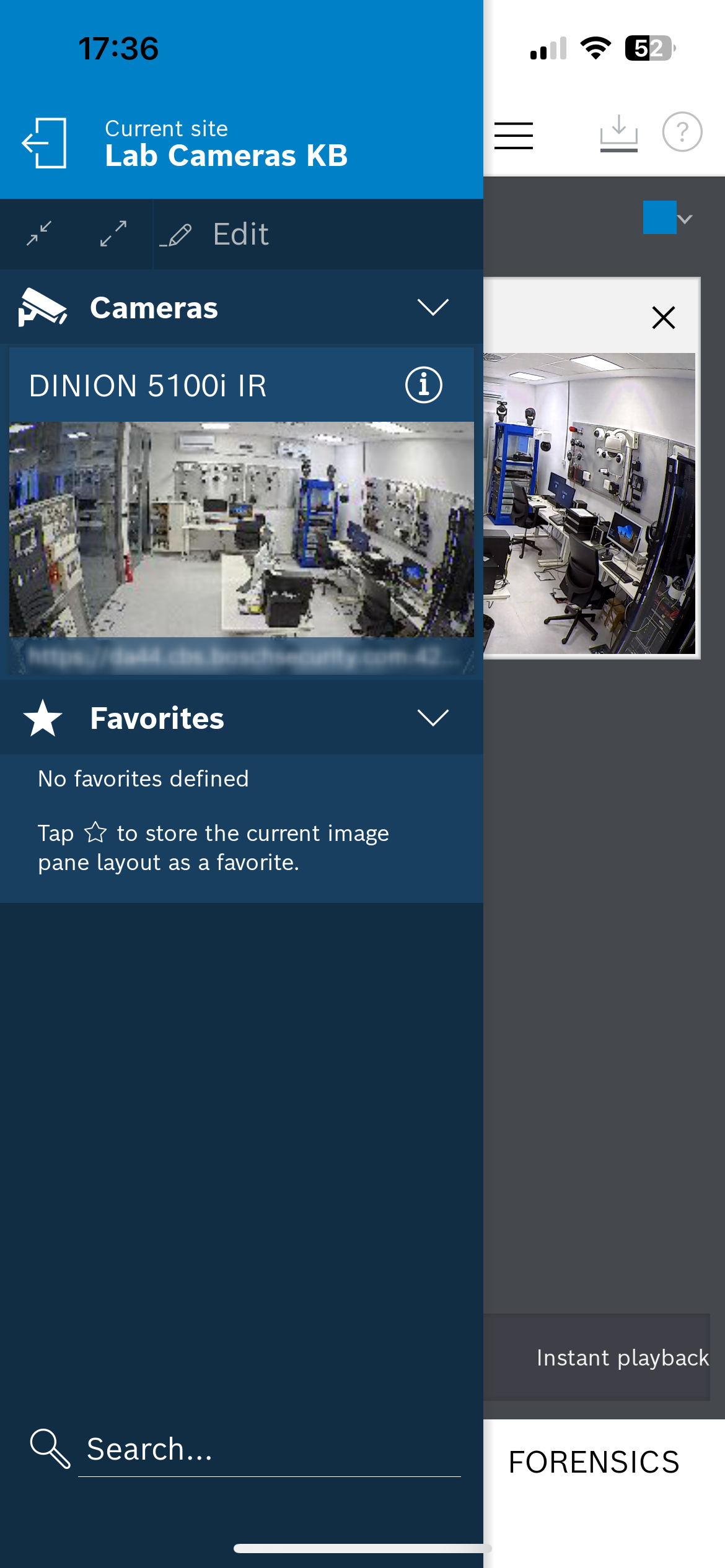

3. Select the Group name. In this example “Lab Cameras KB”
4. Now, the customer user will have the possibility to watch it live. He can also go into recordings, to the PLAYBACK
Note: The same workflow can be used to display a camera on the Windows app "Video Security Client".
If you are using your PC, you need to install Video Security Client for PC from here.
You can refer to the following YouTube videos for additional help: VideoView+ how-to videos
