Question
What is the AMC power supply consumption?
Answer

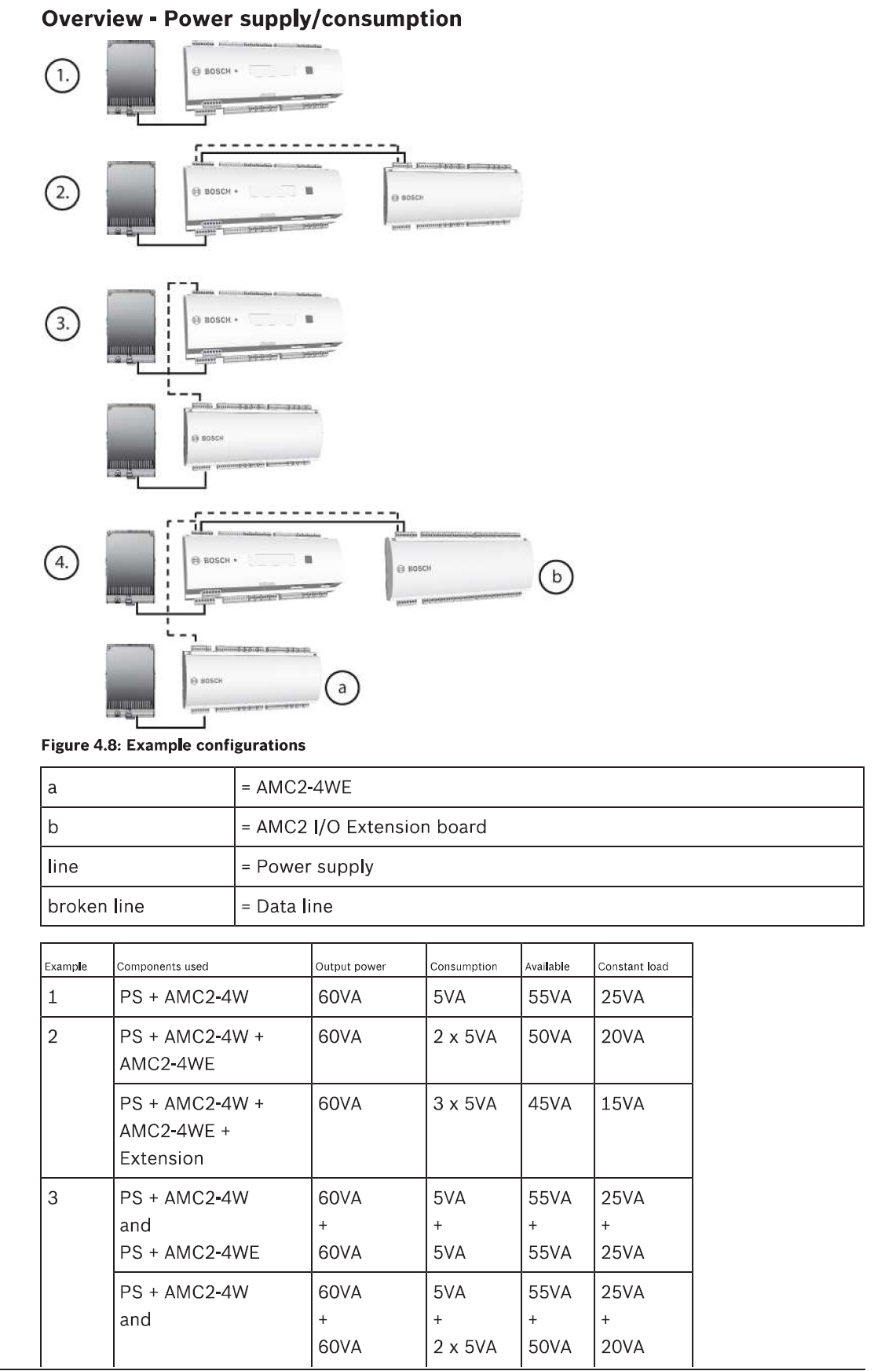

Below is a image which gives an overview of the AMC power supply consumption requirements:
Typical IClass readers consume .78VA average and slightly over 1VA at maximum.
The ARD-FPBEW2-H2 Bio Reader has an average of 7.2 VA average and almost 8VA maximum.
