How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx)?

During the lifespan of the DIP-74xx, there may arise a need to update the BIOS, but this will only be necessary if mandated by development. In such cases, a BIOS update file will be provided through development/product management channels.

Note

Updating the BIOS will reset the BIOS password to the default version.

See here: Where to find the BIOS default password of DIVAR IP all-in-one 7000 gen4 (DIP-74xx)?

Step-by-step guide


Warning

Do not turn off or restart the DIVAR IP all-in-one during the BIOS update. An incomplete or incorrect BIOS update can severally affect the functionality of device or permanently damage it.


  1. Open a web browser and enter the IP address of the DIVAR IP BMC. This will display the login page where you can enter your login credentials.

    1 How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx).jpg


  2. Select the "Maintenance" option from the left-hand menu.

    2 How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx).png


  3. Choose the "BIOS Forced Update" option.

    3 How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx).png

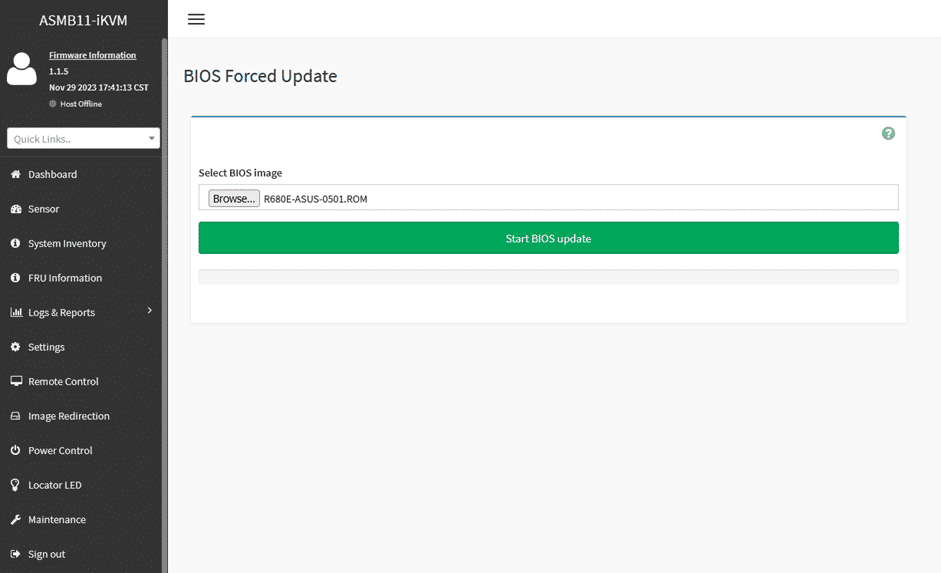

  4. Click on "Browse" to search for and select the BIOS ROM file.

    4 How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx).png

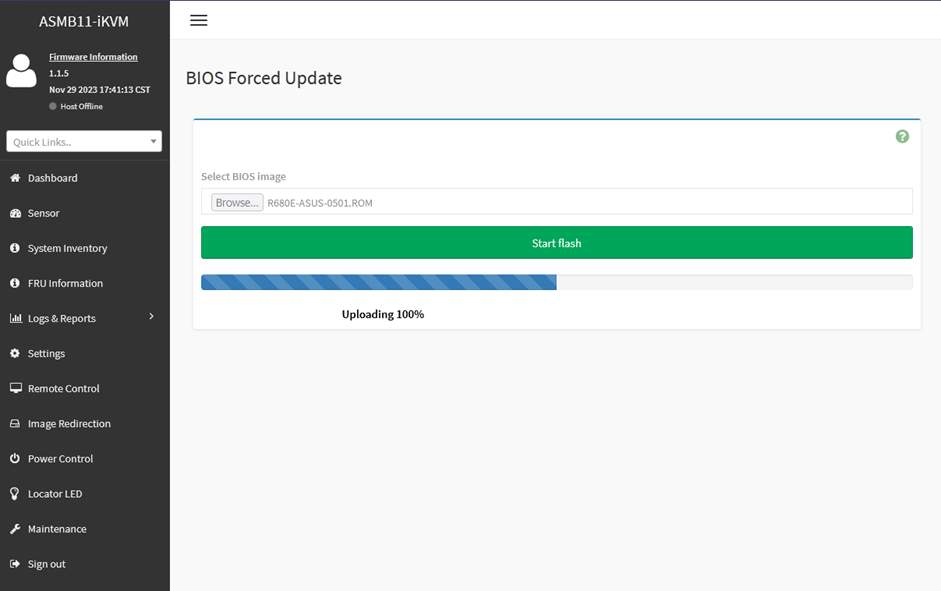

  5. Click on the "Start BIOS update" button and wait for the upload to reach 100%. Then, click on the "Start flash" button.

    5 How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx).jpg


  6. Click on "OK" to confirm the flash procedure.

    6 How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx).jpg


  7. If the update process completes successfully, this pop-up will be displayed.

    7 How to update the BIOS on the DIVAR IP all-in-one 7000 4th gen (DIP-74xx).jpg
