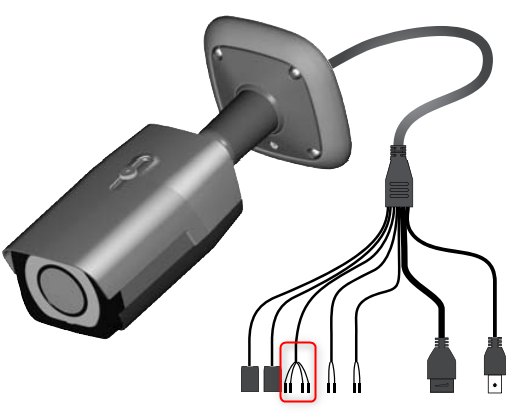

How to wire the camera alarm input of DINION IP starlight 6000i?

Step-by-step guide


image2022-10-4_13-8-46.png         image2022-10-4_13-14-30.png

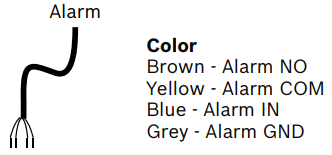

There is a relay output with a normally open configuration, with 2 pins:

  • COM – common connection of the alarm output

  • NO – normally open connection of the alarm output

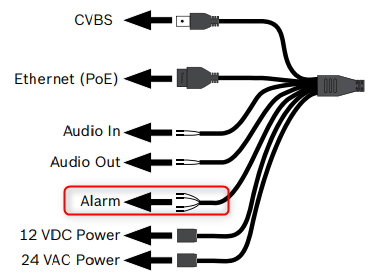

  • The input is the ALARM IN and the GND connection.

image2022-10-4_13-9-34.png image2022-10-4_13-9-38.png

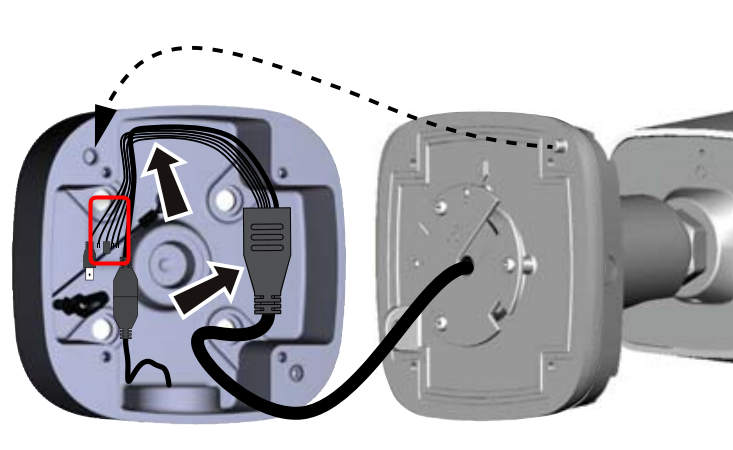

Note: You can also refer to the Quick Installation Guide
