Question
What should I check first if Channel 5 & 6 of DSA E2800 are showing as disconnected?
Answer
Scenario:
-
There are iSCSI ports that go to the switch
-

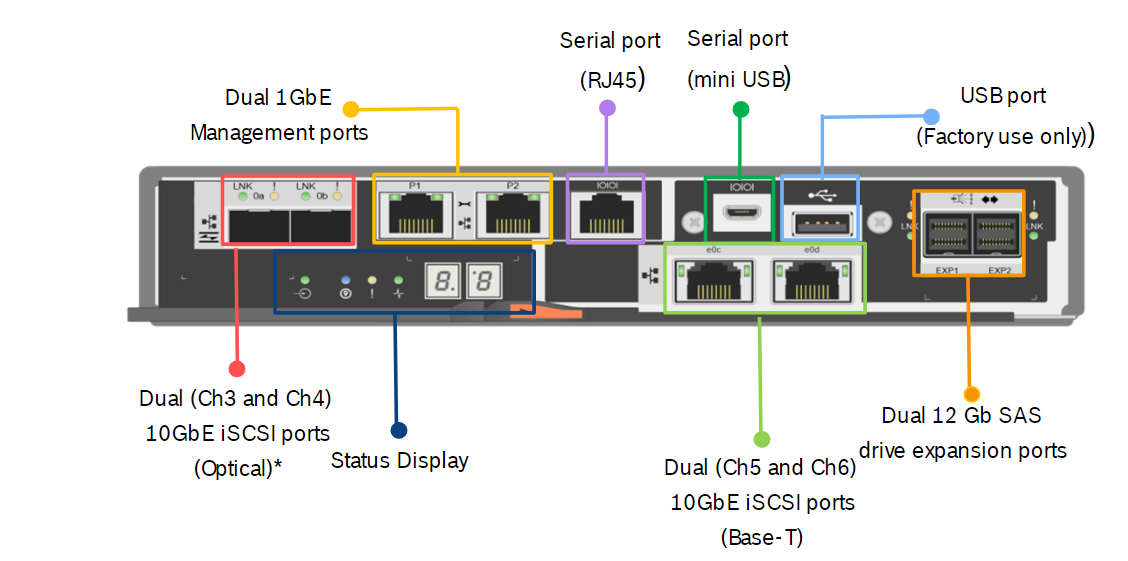

When using Configuration Manager: in the Network > iSCSI tab: Channel 5 & 6 are showing disconnected and the unit cannot be added to BVMS Configuration Client
-

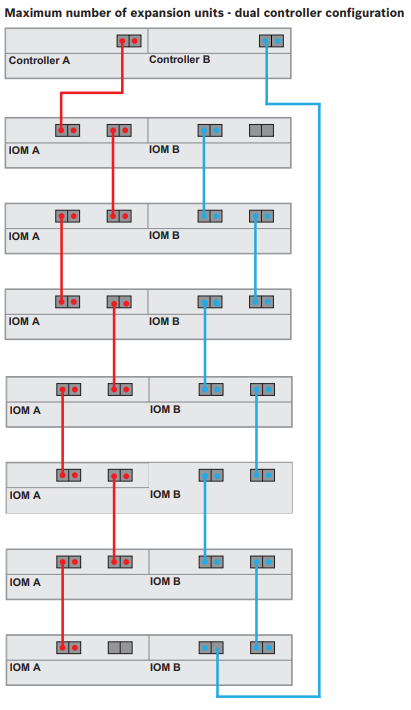

Verify if the expansion slots are connected correctly (page 21)
-
Afterwards, wait a few minutes until they load up, and only then start the DSA S2800.
-
Now, you can check in the Configuration Manager to see if the IP addresses need to be changed.
-
Once you verify that they are correct, you can add the Device in Configuration Client.
