Which are the streaming capabilities of CPP7 & CPP7.3 Bosch IP cameras?

Question

Which are the streaming capabilities of CPP7 & CPP7.3 Bosch IP cameras?


šŸ“š Overview:


Answer

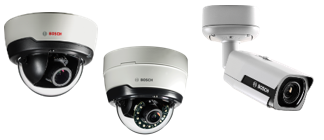

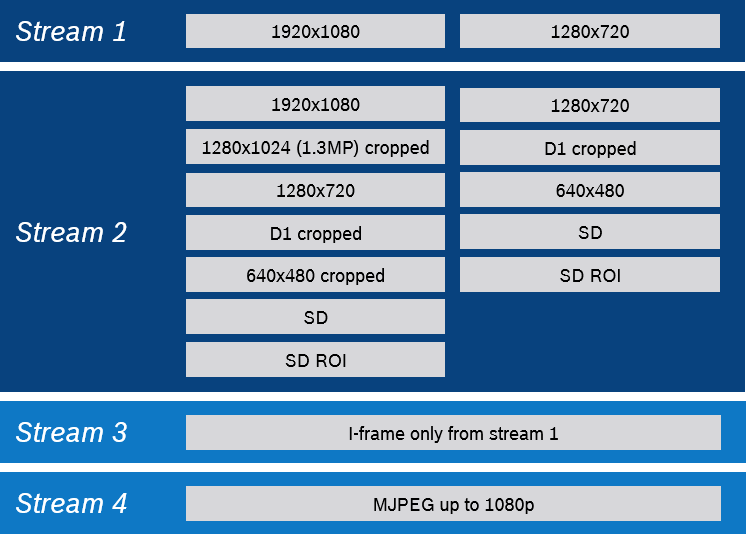

FLEXIDOME IP 4000i / DINION IP 4000i IR


All also available in upright mode

All available in H.264 and H.265


FLEXIDOME IP 5000i / DINION IP 5000i IR


All also available in upright mode

All available in H.264 and H.265

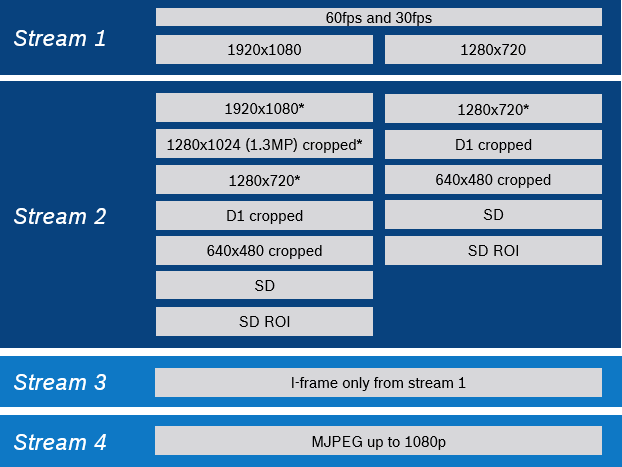

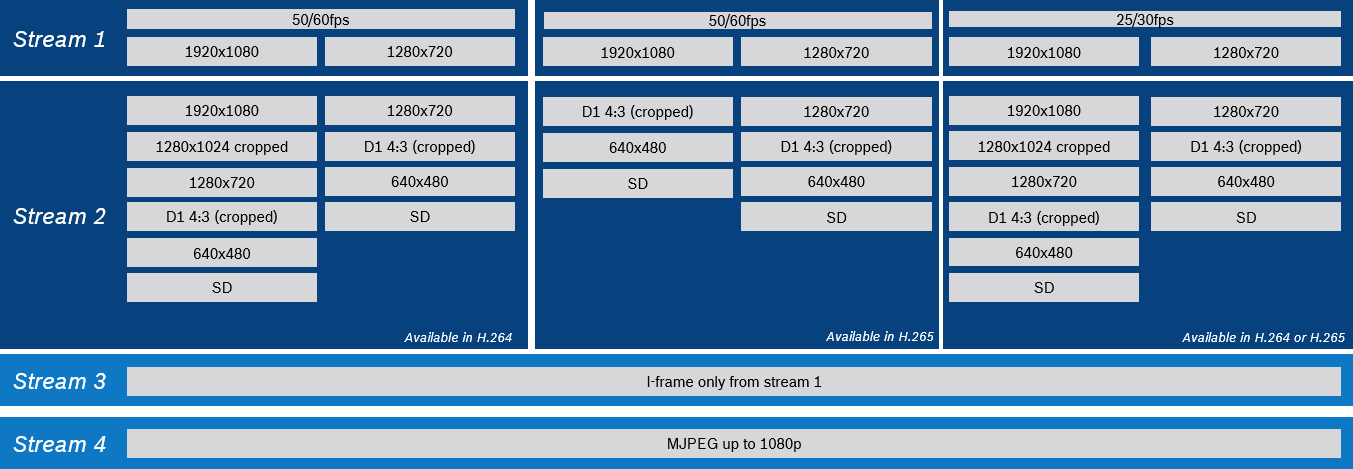

DINION IP starlight 6000i IR


All also available in upright mode

* Not available at 60fps in H.265


DINION / FLEXIDOME IP starlight 6000 / 7000


All also available in upright mode

Cameras only support H.264

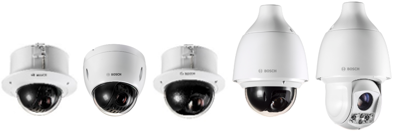

AUTODOME IP 4000i / 5000i / 5000i IR

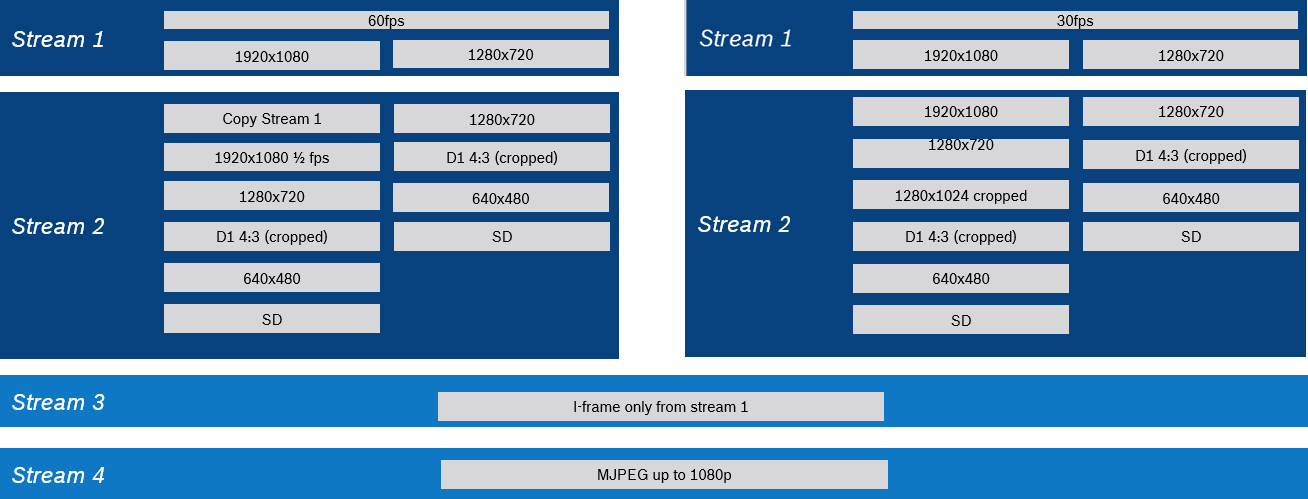

MIC IP starlight 7000i



MIC IP starlight 7100i



MIC IP ultra 7100i

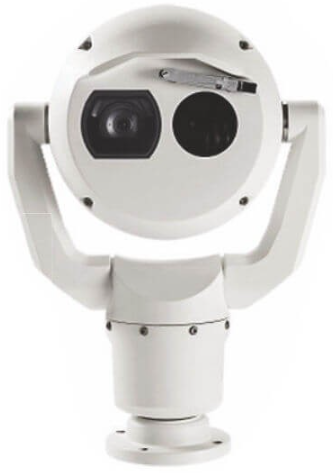

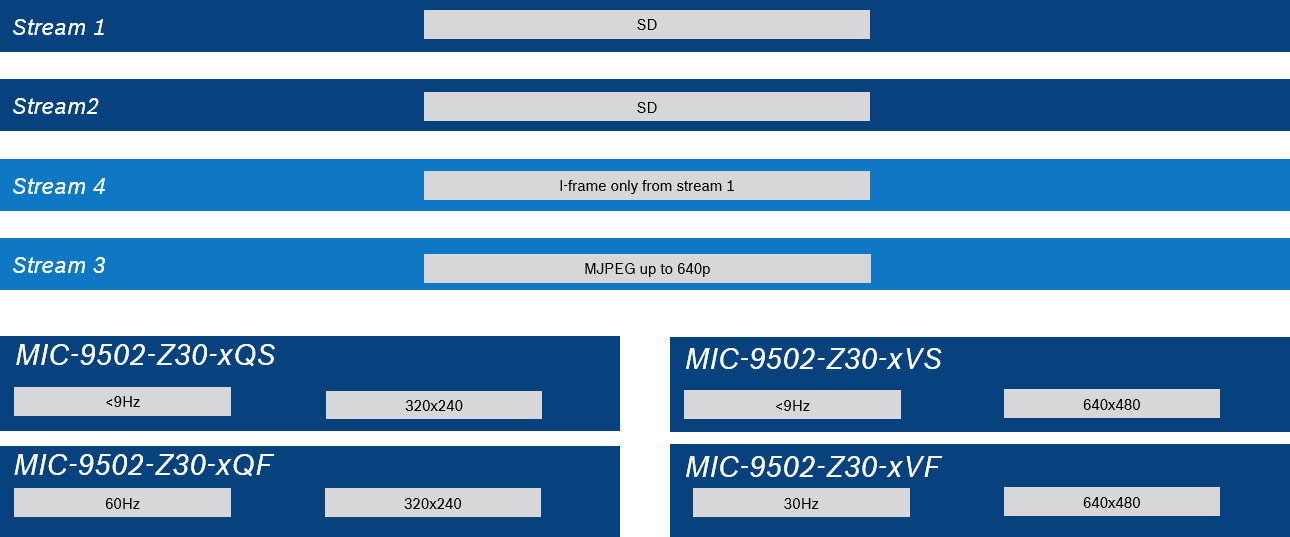

MIC IP fusion 9000i (thermal camera)



MIC IP fusion 9000i (visible camera)


Available in H.264 or H.265


nice to know.png Nice to know:
