Where to find the alarm In or Out & audio pinout connector block of FLEXIDOME Panoramic 5100i IR camera?

Question

Where to find the alarm I/O & audio pinout connector block of FLEXIDOME Panoramic 5100i IR camera?

Answer

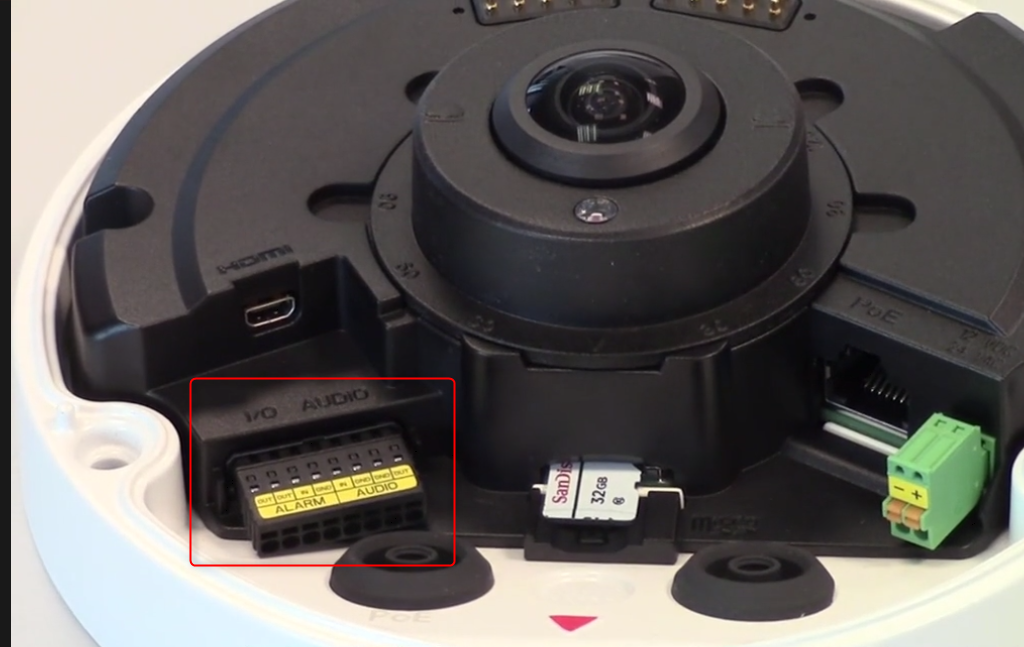

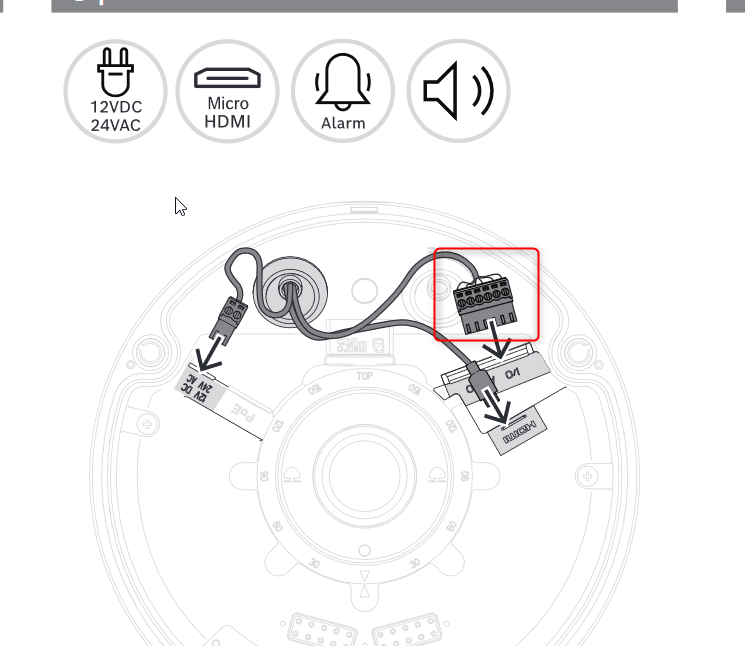

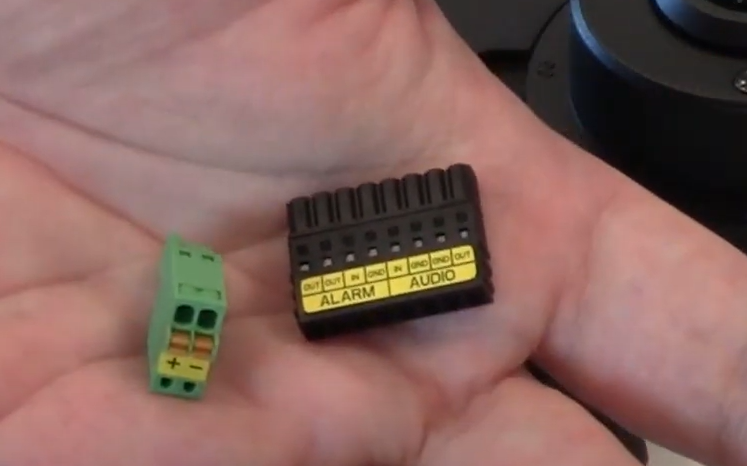

Please find below the connector’s pinout of FLEXIDOME Panoramic 5100i IR camera:

• I/O: (Out / Out / In / GND)

• Audio: (IN / GND / GND / OUT)

Note: The camera Audio input only accepts line level input. Direct connection of a passive microphone input is not supported.
