Question
Which is the RCP over CGI command for calling desired pre-positions (PTZ) of Bosch IP cameras?
Answer
You can call desired pre-positions (PTZ) of Bosch IP cameras by using OSRD protocol or BiCom protocol. Please find below some examples and detailed explanation:
1. OSRD protocol:
Below is the RCP over CGI command.
Note that this RCP over CGI payload below is using the OSRD protocol. The limitation of this OSRD protocol is that it can only support maximum 99 pre-positions. (this OSRD was used by our Allegiant devices in the past)
-
http://<IPAddress>/rcp.xml?command=0x09A5&type=P_OCTET&direction=WRITE&num=1&payload=0x80000201B080070563
*Where <IPAddress> is the IP Address of your camera
The last 2 green digits are referring to the pre-position number, but it is the Hexadecimal number of the Pre-position number, as per table below:
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
|
Pre-position 1 |
01 |
|
Pre-position 21 |
15 |
|
Pre-position 41 |
29 |
|
Pre-position 61 |
3D |
|
Pre-position 81 |
51 |
|
|
Pre-position 2 |
02 |
|
Pre-position 22 |
16 |
|
Pre-position 42 |
2A |
|
Pre-position 62 |
3E |
|
Pre-position 82 |
52 |
|
|
Pre-position 3 |
03 |
|
Pre-position 23 |
17 |
|
Pre-position 43 |
2B |
|
Pre-position 63 |
3F |
|
Pre-position 83 |
53 |
|
|
Pre-position 4 |
04 |
|
Pre-position 24 |
18 |
|
Pre-position 44 |
2C |
|
Pre-position 64 |
40 |
|
Pre-position 84 |
54 |
|
|
Pre-position 5 |
05 |
|
Pre-position 25 |
19 |
|
Pre-position 45 |
2D |
|
Pre-position 65 |
41 |
|
Pre-position 85 |
55 |
|
|
Pre-position 6 |
06 |
|
Pre-position 26 |
1A |
|
Pre-position 46 |
2E |
|
Pre-position 66 |
42 |
|
Pre-position 86 |
56 |
|
|
Pre-position 7 |
07 |
|
Pre-position 27 |
1B |
|
Pre-position 47 |
2F |
|
Pre-position 67 |
43 |
|
Pre-position 87 |
57 |
|
|
Pre-position 8 |
08 |
|
Pre-position 28 |
1C |
|
Pre-position 48 |
30 |
|
Pre-position 68 |
44 |
|
Pre-position 88 |
58 |
|
|
Pre-position 9 |
09 |
|
Pre-position 29 |
1D |
|
Pre-position 49 |
31 |
|
Pre-position 69 |
45 |
|
Pre-position 89 |
59 |
|
|
Pre-position 10 |
0A |
|
Pre-position 30 |
1E |
|
Pre-position 50 |
32 |
|
Pre-position 70 |
46 |
|
Pre-position 90 |
5A |
|
|
Pre-position 11 |
0B |
|
Pre-position 31 |
1F |
|
Pre-position 51 |
33 |
|
Pre-position 71 |
47 |
|
Pre-position 91 |
5B |
|
|
Pre-position 12 |
0C |
|
Pre-position 32 |
20 |
|
Pre-position 52 |
34 |
|
Pre-position 72 |
48 |
|
Pre-position 92 |
5C |
|
|
Pre-position 13 |
0D |
|
Pre-position 33 |
21 |
|
Pre-position 53 |
35 |
|
Pre-position 73 |
49 |
|
Pre-position 93 |
5D |
|
|
Pre-position 14 |
0E |
|
Pre-position 34 |
22 |
|
Pre-position 54 |
36 |
|
Pre-position 74 |
4A |
|
Pre-position 94 |
5E |
|
|
Pre-position 15 |
0F |
|
Pre-position 35 |
23 |
|
Pre-position 55 |
37 |
|
Pre-position 75 |
4B |
|
Pre-position 95 |
5F |
|
|
Pre-position 16 |
10 |
|
Pre-position 36 |
24 |
|
Pre-position 56 |
38 |
|
Pre-position 76 |
4C |
|
Pre-position 96 |
60 |
|
|
Pre-position 17 |
11 |
|
Pre-position 37 |
25 |
|
Pre-position 57 |
39 |
|
Pre-position 77 |
4D |
|
Pre-position 97 |
61 |
|
|
Pre-position 18 |
12 |
|
Pre-position 38 |
26 |
|
Pre-position 58 |
3A |
|
Pre-position 78 |
4E |
|
Pre-position 98 |
62 |
|
|
Pre-position 19 |
13 |
|
Pre-position 39 |
27 |
|
Pre-position 59 |
3B |
|
Pre-position 79 |
4F |
|
Pre-position 99 |
63 |
|
|
Pre-position 20 |
14 |
|
Pre-position 40 |
28 |
|
Pre-position 60 |
3C |
|
Pre-position 80 |
50 |
|
|
|
|
Samples:
-

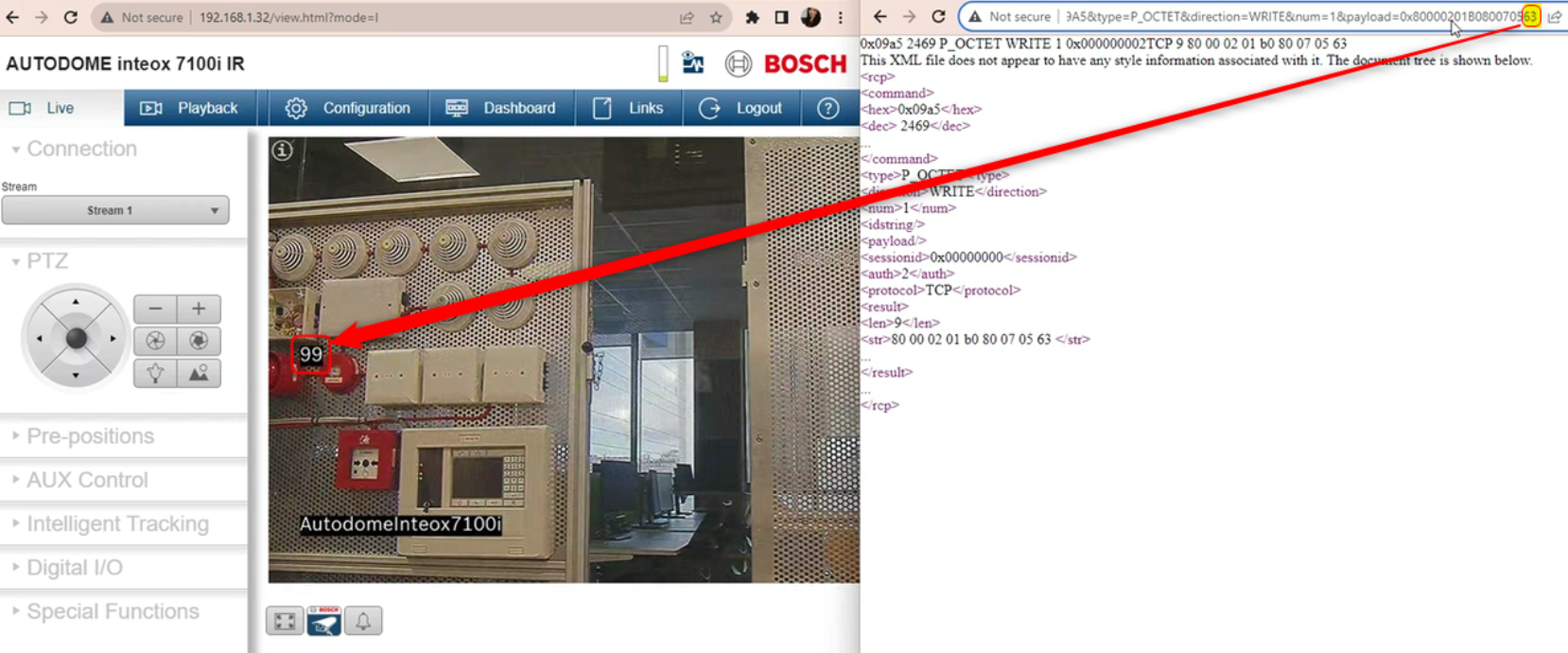

Pre-position 99:
-

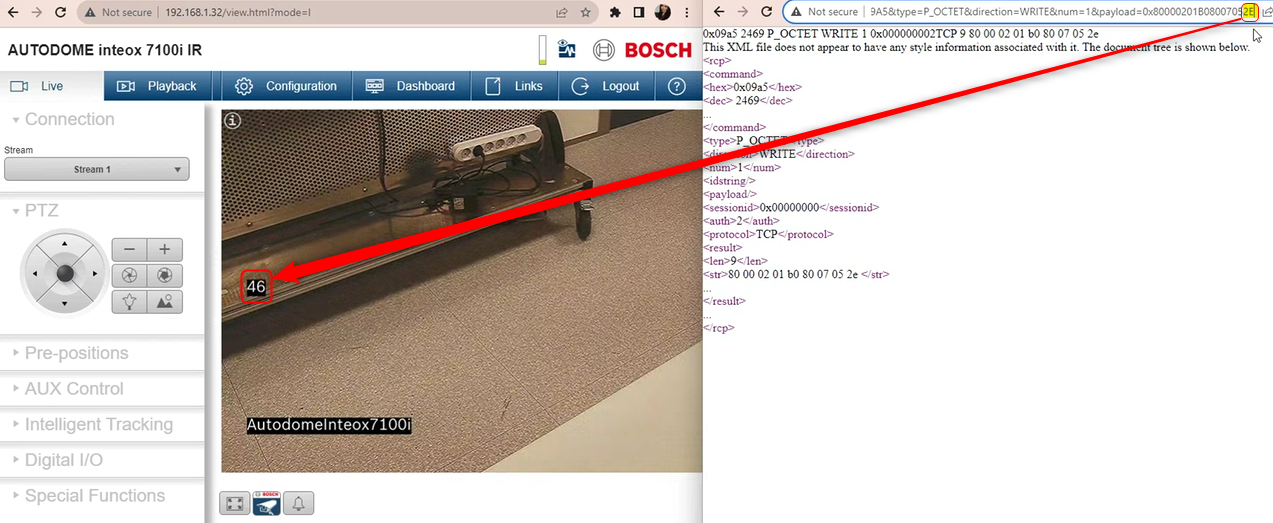

Pre-position 46:
2. BiCom protocol:
For Bosch IP cameras, you can also use BiCom as the payload instead of RCP over CGI payload above.
The BiCom protocol can supports up to 256 pre-positions.
-
http://<IPAddress>/rcp.xml?command=0x09A5&type=P_OCTET&direction=WRITE&num=1&payload=0x800006200081
*Where <IPAddress> is the IP Address of your camera
The 2 green digits are referring to the pre-position number, but it is the Hexadecimal number of the Pre-position number, as per table below:
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Pre-position 1 |
00 |
|
Pre-position 21 |
14 |
|
Pre-position 41 |
28 |
|
Pre-position 61 |
3C |
|
Pre-position 81 |
50 |
|
Pre-position 101 |
64 |
|
Pre-position 121 |
78 |
|
Pre-position 2 |
01 |
|
Pre-position 22 |
15 |
|
Pre-position 42 |
29 |
|
Pre-position 62 |
3D |
|
Pre-position 82 |
51 |
|
Pre-position 102 |
65 |
|
Pre-position 122 |
79 |
|
Pre-position 3 |
02 |
|
Pre-position 23 |
16 |
|
Pre-position 43 |
2A |
|
Pre-position 63 |
3E |
|
Pre-position 83 |
52 |
|
Pre-position 103 |
66 |
|
Pre-position 123 |
7A |
|
Pre-position 4 |
03 |
|
Pre-position 24 |
17 |
|
Pre-position 44 |
2B |
|
Pre-position 64 |
3F |
|
Pre-position 84 |
53 |
|
Pre-position 104 |
67 |
|
Pre-position 124 |
7B |
|
Pre-position 5 |
04 |
|
Pre-position 25 |
18 |
|
Pre-position 45 |
2C |
|
Pre-position 65 |
40 |
|
Pre-position 85 |
54 |
|
Pre-position 105 |
68 |
|
Pre-position 125 |
7C |
|
Pre-position 6 |
05 |
|
Pre-position 26 |
19 |
|
Pre-position 46 |
2D |
|
Pre-position 66 |
41 |
|
Pre-position 86 |
55 |
|
Pre-position 106 |
69 |
|
Pre-position 126 |
7D |
|
Pre-position 7 |
06 |
|
Pre-position 27 |
1A |
|
Pre-position 47 |
2E |
|
Pre-position 67 |
42 |
|
Pre-position 87 |
56 |
|
Pre-position 107 |
6A |
|
Pre-position 127 |
7E |
|
Pre-position 8 |
07 |
|
Pre-position 28 |
1B |
|
Pre-position 48 |
2F |
|
Pre-position 68 |
43 |
|
Pre-position 88 |
57 |
|
Pre-position 108 |
6B |
|
Pre-position 128 |
7F |
|
Pre-position 9 |
08 |
|
Pre-position 29 |
1C |
|
Pre-position 49 |
30 |
|
Pre-position 69 |
44 |
|
Pre-position 89 |
58 |
|
Pre-position 109 |
6C |
|
Pre-position 129 |
80 |
|
Pre-position 10 |
09 |
|
Pre-position 30 |
1D |
|
Pre-position 50 |
31 |
|
Pre-position 70 |
45 |
|
Pre-position 90 |
59 |
|
Pre-position 110 |
6D |
|
Pre-position 130 |
81 |
|
Pre-position 11 |
0A |
|
Pre-position 31 |
1E |
|
Pre-position 51 |
32 |
|
Pre-position 71 |
46 |
|
Pre-position 91 |
5A |
|
Pre-position 111 |
6E |
|
Pre-position 131 |
82 |
|
Pre-position 12 |
0B |
|
Pre-position 32 |
1F |
|
Pre-position 52 |
33 |
|
Pre-position 72 |
47 |
|
Pre-position 92 |
5B |
|
Pre-position 112 |
6F |
|
Pre-position 132 |
83 |
|
Pre-position 13 |
0C |
|
Pre-position 33 |
20 |
|
Pre-position 53 |
34 |
|
Pre-position 73 |
48 |
|
Pre-position 93 |
5C |
|
Pre-position 113 |
70 |
|
Pre-position 133 |
84 |
|
Pre-position 14 |
0D |
|
Pre-position 34 |
21 |
|
Pre-position 54 |
35 |
|
Pre-position 74 |
49 |
|
Pre-position 94 |
5D |
|
Pre-position 114 |
71 |
|
Pre-position 134 |
85 |
|
Pre-position 15 |
0E |
|
Pre-position 35 |
22 |
|
Pre-position 55 |
36 |
|
Pre-position 75 |
4A |
|
Pre-position 95 |
5E |
|
Pre-position 115 |
72 |
|
Pre-position 135 |
86 |
|
Pre-position 16 |
0F |
|
Pre-position 36 |
23 |
|
Pre-position 56 |
37 |
|
Pre-position 76 |
4B |
|
Pre-position 96 |
5F |
|
Pre-position 116 |
73 |
|
Pre-position 136 |
87 |
|
Pre-position 17 |
10 |
|
Pre-position 37 |
24 |
|
Pre-position 57 |
38 |
|
Pre-position 77 |
4C |
|
Pre-position 97 |
60 |
|
Pre-position 117 |
74 |
|
Pre-position 137 |
88 |
|
Pre-position 18 |
11 |
|
Pre-position 38 |
25 |
|
Pre-position 58 |
39 |
|
Pre-position 78 |
4D |
|
Pre-position 98 |
61 |
|
Pre-position 118 |
75 |
|
Pre-position 138 |
89 |
|
Pre-position 19 |
12 |
|
Pre-position 39 |
26 |
|
Pre-position 59 |
3A |
|
Pre-position 79 |
4E |
|
Pre-position 99 |
62 |
|
Pre-position 119 |
76 |
|
Pre-position 139 |
8A |
|
Pre-position 20 |
13 |
|
Pre-position 40 |
27 |
|
Pre-position 60 |
3B |
|
Pre-position 80 |
4F |
|
Pre-position 100 |
63 |
|
Pre-position 120 |
77 |
|
Pre-position 140 |
8B |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
Prep |
Hex |
|
|
|
|
Pre-position 141 |
8C |
|
Pre-position 161 |
A0 |
|
Pre-position 181 |
B4 |
|
Pre-position 201 |
C8 |
|
Pre-position 221 |
DC |
|
Pre-position 241 |
F0 |
|
|
|
|
Pre-position 142 |
8D |
|
Pre-position 162 |
A1 |
|
Pre-position 182 |
B5 |
|
Pre-position 202 |
C9 |
|
Pre-position 222 |
DD |
|
Pre-position 242 |
F1 |
|
|
|
|
Pre-position 143 |
8E |
|
Pre-position 163 |
A2 |
|
Pre-position 183 |
B6 |
|
Pre-position 203 |
CA |
|
Pre-position 223 |
DE |
|
Pre-position 243 |
F2 |
|
|
|
|
Pre-position 144 |
8F |
|
Pre-position 164 |
A3 |
|
Pre-position 184 |
B7 |
|
Pre-position 204 |
CB |
|
Pre-position 224 |
DF |
|
Pre-position 244 |
F3 |
|
|
|
|
Pre-position 145 |
90 |
|
Pre-position 165 |
A4 |
|
Pre-position 185 |
B8 |
|
Pre-position 205 |
CC |
|
Pre-position 225 |
E0 |
|
Pre-position 245 |
F4 |
|
|
|
|
Pre-position 146 |
91 |
|
Pre-position 166 |
A5 |
|
Pre-position 186 |
B9 |
|
Pre-position 206 |
CD |
|
Pre-position 226 |
E1 |
|
Pre-position 246 |
F5 |
|
|
|
|
Pre-position 147 |
92 |
|
Pre-position 167 |
A6 |
|
Pre-position 187 |
BA |
|
Pre-position 207 |
CE |
|
Pre-position 227 |
E2 |
|
Pre-position 247 |
F6 |
|
|
|
|
Pre-position 148 |
93 |
|
Pre-position 168 |
A7 |
|
Pre-position 188 |
BB |
|
Pre-position 208 |
CF |
|
Pre-position 228 |
E3 |
|
Pre-position 248 |
F7 |
|
|
|
|
Pre-position 149 |
94 |
|
Pre-position 169 |
A8 |
|
Pre-position 189 |
BC |
|
Pre-position 209 |
D0 |
|
Pre-position 229 |
E4 |
|
Pre-position 249 |
F8 |
|
|
|
|
Pre-position 150 |
95 |
|
Pre-position 170 |
A9 |
|
Pre-position 190 |
BD |
|
Pre-position 210 |
D1 |
|
Pre-position 230 |
E5 |
|
Pre-position 250 |
F9 |
|
|
|
|
Pre-position 151 |
96 |
|
Pre-position 171 |
AA |
|
Pre-position 191 |
BE |
|
Pre-position 211 |
D2 |
|
Pre-position 231 |
E6 |
|
Pre-position 251 |
FA |
|
|
|
|
Pre-position 152 |
97 |
|
Pre-position 172 |
AB |
|
Pre-position 192 |
BF |
|
Pre-position 212 |
D3 |
|
Pre-position 232 |
E7 |
|
Pre-position 252 |
FB |
|
|
|
|
Pre-position 153 |
98 |
|
Pre-position 173 |
AC |
|
Pre-position 193 |
C0 |
|
Pre-position 213 |
D4 |
|
Pre-position 233 |
E8 |
|
Pre-position 253 |
FC |
|
|
|
|
Pre-position 154 |
99 |
|
Pre-position 174 |
AD |
|
Pre-position 194 |
C1 |
|
Pre-position 214 |
D5 |
|
Pre-position 234 |
E9 |
|
Pre-position 254 |
FD |
|
|
|
|
Pre-position 155 |
9A |
|
Pre-position 175 |
AE |
|
Pre-position 195 |
C2 |
|
Pre-position 215 |
D6 |
|
Pre-position 235 |
EA |
|
Pre-position 255 |
FE |
|
|
|
|
Pre-position 156 |
9B |
|
Pre-position 176 |
AF |
|
Pre-position 196 |
C3 |
|
Pre-position 216 |
D7 |
|
Pre-position 236 |
EB |
|
Pre-position 256 |
FF |
|
|
|
|
Pre-position 157 |
9C |
|
Pre-position 177 |
B0 |
|
Pre-position 197 |
C4 |
|
Pre-position 217 |
D8 |
|
Pre-position 237 |
EC |
|
|
|
|
|
|
|
Pre-position 158 |
9D |
|
Pre-position 178 |
B1 |
|
Pre-position 198 |
C5 |
|
Pre-position 218 |
D9 |
|
Pre-position 238 |
ED |
|
|
|
|
|
|
|
Pre-position 159 |
9E |
|
Pre-position 179 |
B2 |
|
Pre-position 199 |
C6 |
|
Pre-position 219 |
DA |
|
Pre-position 239 |
EE |
|
|
|
|
|
|
|
Pre-position 160 |
9F |
|
Pre-position 180 |
B3 |
|
Pre-position 200 |
C7 |
|
Pre-position 220 |
DB |
|
Pre-position 240 |
EF |
|
|
|
|
|
|
Samples:
-
Pre-position 1:
-
Pre-position 161:

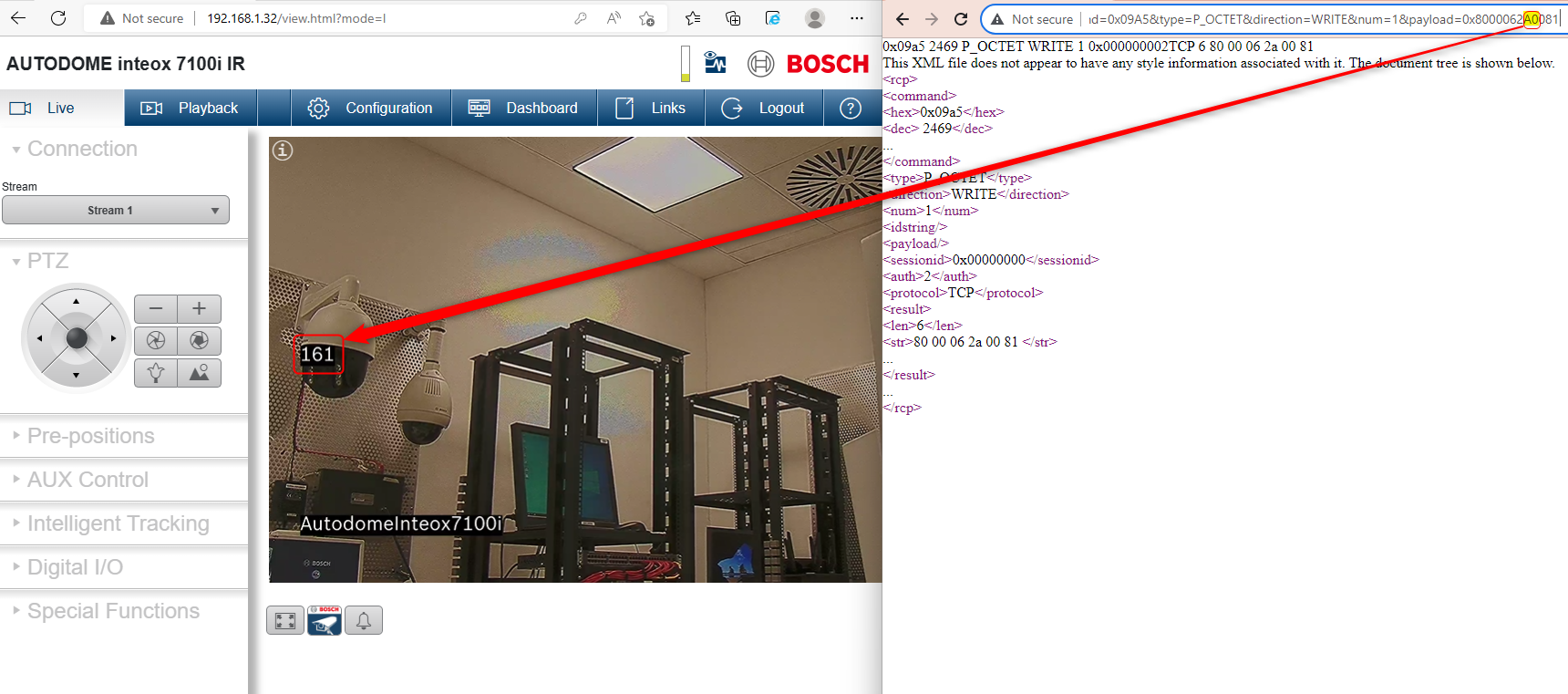

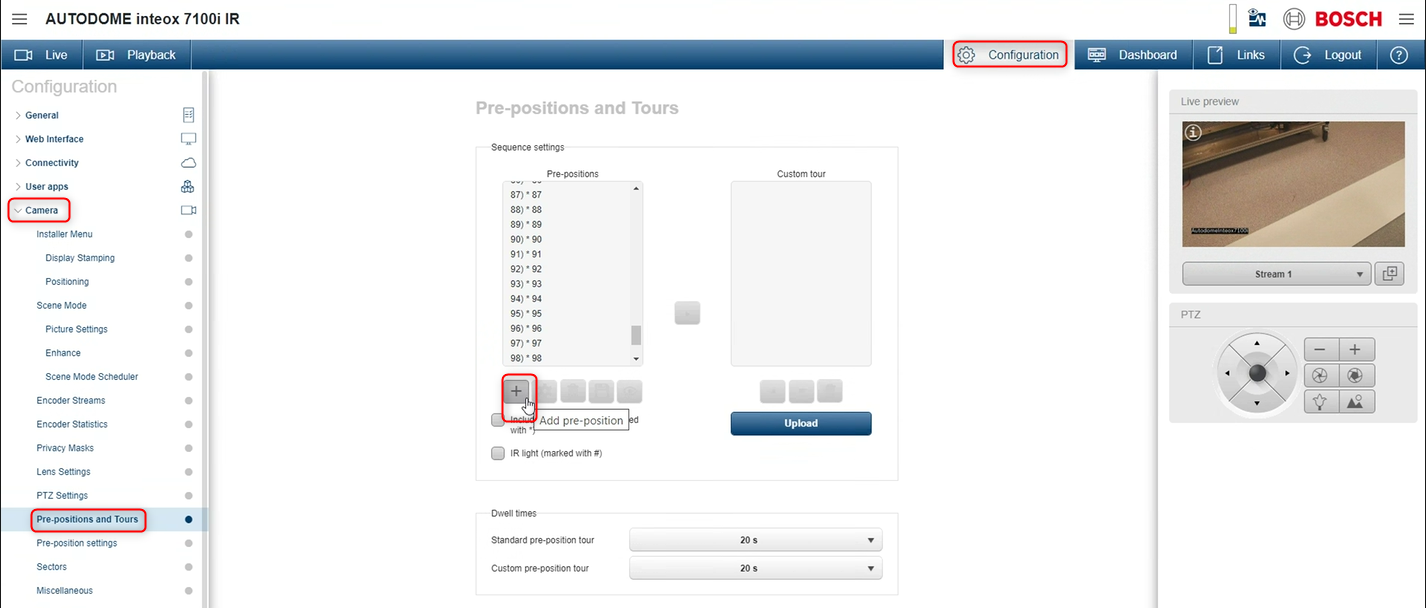

You can define your pre-positions in Configuration > Camera > Pre-positions and Tours menu:
