Question
Which is the RCP over CGI command to switch ON-OFF the IR-LED of FLEXIDOME IP 3000i IR?
Answer
IR function On: the IR illumination is always on.
http://<IP_Address>/rcp.xml?command=0x09A5&type=P_OCTET&direction=WRITE&num=1&payload=0x00040410030001
IR function Off: the IR illumination is always off.
http://<IP_Address>/rcp.xml?command=0x09A5&type=P_OCTET&direction=WRITE&num=1&payload=0x00040410030000
IR function Auto: the camera automatically switches the IR illumination.
http://<IP_Address>/rcp.xml?command=0x09A5&type=P_OCTET&direction=WRITE&num=1&payload=0x00040410030002

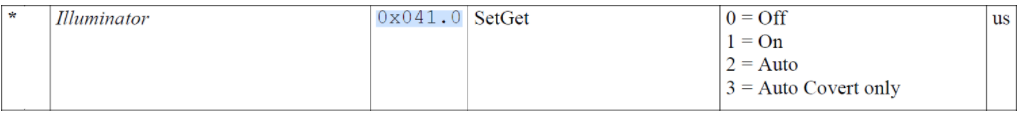

Additional info for the payload:
First "04" addresses the "camera server", following "0410" is the "object ID" of the illuminator, "03" is SetGet, last data represents the actual command what to do.
Bicom command used is 0x09A5.
