What is Essential Video Analytics & when to use it (resolution, real-life calculation & frame rate)?

Question

Answer

Essential Video Analytics allows you to record all of the object information and change the rules even after the fact for fully configurable forensic search.

Bosch Essential Video Analytics is a video analytics type that is delivered as standard with Bosch IP 4000 to 6000 series with CPP7.3 and older. Furthermore, it is not depending on a hardware accelerator at the IP camera.

See also: Essential Video Analytics Datasheet

Architecture and resolution

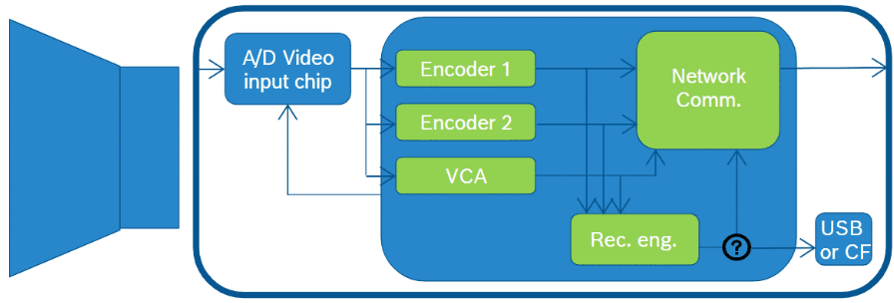

Architecture

Please find the information about the architecture of Essential Video Analytics below.

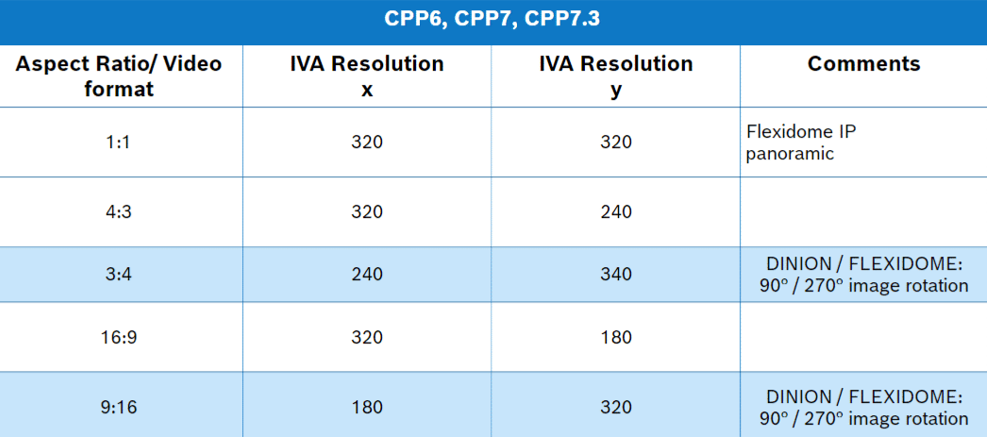

Resolution

The resolution of Essential Video Analytics is different from the IP camera output as it is being processed separately and sub-samples the video before the encoder processes it.

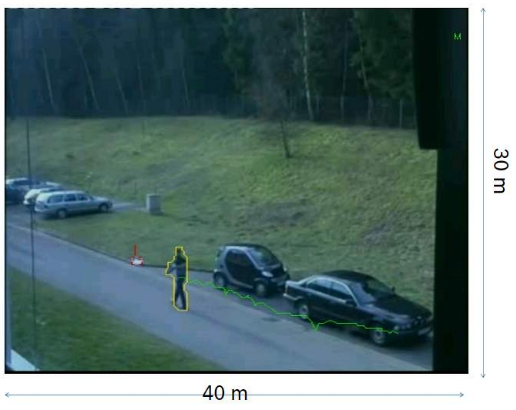

Real-life calculation Essential Video Analytics

Detection resolution: 320 x 180 pixels
Horizontal meter/pixel: 40 / 320 ≈ 0.13 m/pixel
Minimum horizontal size: 5 x 0.13 ≈ 0.65 meter.

Note: The resolution calculation is more complicated because:

The distance resolution is best near the camera (1 pixel represents a smaller area of ground)
In the distance the resolution degrades because 1 pixel can represent several meters of ground

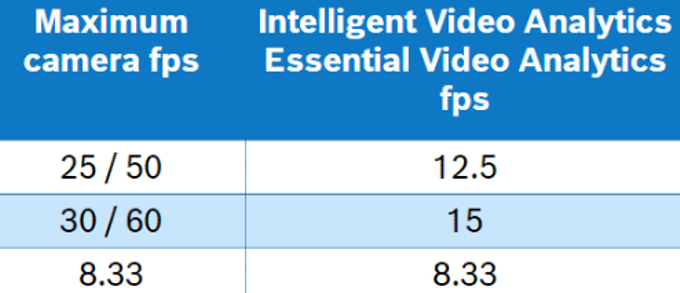

Frame Rates

The Video Analytics frame rate depends on the maximum frame rate provided by the camera sensor.

When to use?

Essential Video Analytics is best fit in:

Small /indoor environments: the detection distance here is not that important as the area that it needs to be covered by the camera it is not very large. Because the area is small the object detection is not impacted by the resolution degradation in the distance.
Controlled environments: in a controlled environment the optimal conditions for a good Video Analytics performance can be influenced. such as lightning.
Normal weather conditions

Typical applications for Essential Video Analytics environments are small and medium businesses, large retail stores, commercial buildings, and warehouses.

Typical application tasks for Essential Video Analytics are:

(Indoor) intrusion detection
Enforcing health and safety regulations:
- Enforcing no-parking zones
- Detect blocked emergency exits
Business analytics:
- Queuing
- People counting
- Crowd density information
