How to install a MicroSD card for local recording in DINION 7100s?

Local storage on SD cards should only be used for alarm recording. To minimize the risk of losing information, use multiple, redundant recording systems and a procedure to back up all digital information.

Advanced edge recording

Advanced edge recording provides the reliable storage solution possible due to the combination of these functions:

  • Industrial microSD card support allows for extreme lifetime

  • Health monitoring of industrial microSD cards provide early service indications


Step-by-step guide

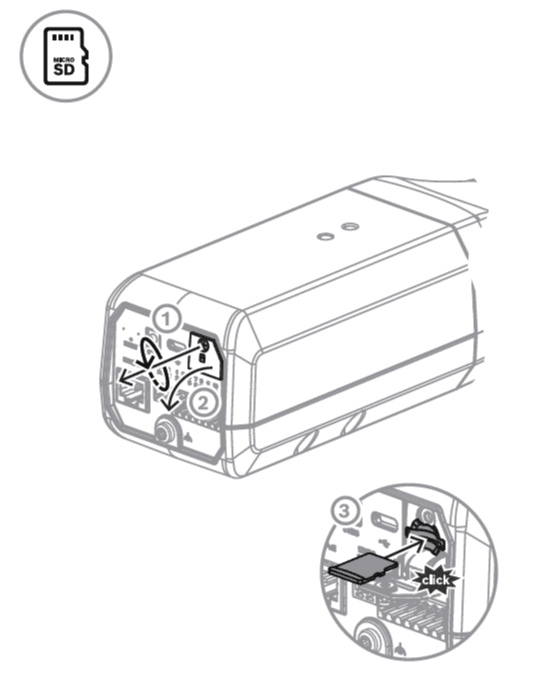

  1. Unscrew the card slot cover.

  2. Slide the memory card into the slot until it locks in place.


  1. Screw the cover into place to seal the slot

academy.png For a better understanding of the product information, technical specifications, and characteristics of the DINION 7100s, we encourage you to join our online Training from KEENFINITY Academy: DINION 7100s - Product Introduction Training
